Tractors > J.I. Case > 301

J.I. Case 301 Tests



J.I. Case 301 tractor photo
1956 - 1958
300 Series
Row-Crop tractor
Series map:
301
30.0hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 614

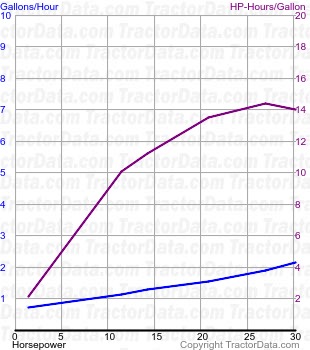

301 fuel use from test 614
Nebraska Tractor Test 614
Diesel 4-speed 2WD
April 15 - 23, 1957
Link: Nebraska Tractor Test 614 file
Belt power (max)30.80 hp
23.0 kW
Belt fuel use (max)2.2 gal/hour
8.3 l/hour
Drawbar performance
Max power26.31 hp
19.6 kW
Gear 3 used for power test.
Max pull4,067 lbs
1844 kg
Gear 1 used for pull test.
