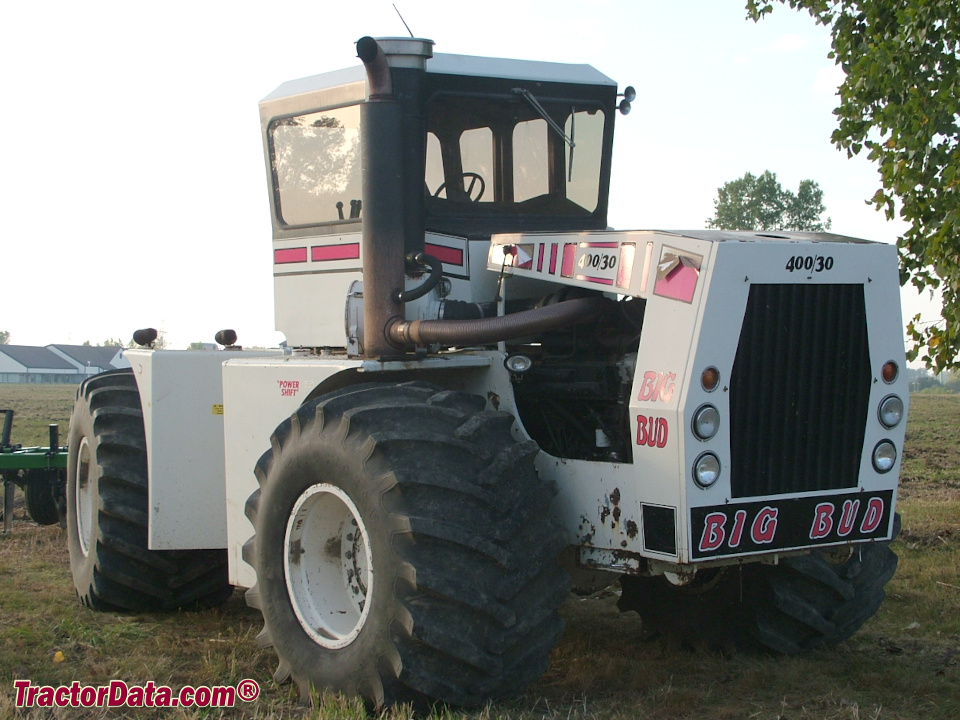

Big Bud 400/30
| 1979 - 1981 |
3 Series | Four-wheel Drive (4WD) tractor |
|
Production |
Manufacturer: | Big Bud
|
Type: | Four-wheel Drive (4WD) tractor
|
Factory: | Havre, Montana, USA
|
Original price: | $117,000 ()
|
The Cummins KT-1150-C400 was also available as a special-order engine option on the Big Bud 400/30. |
Big Bud 400/30 Power |
Engine: | 400 hp 298.3 kW
|
Mechanical |
Chassis: | 4x4 articulated 4WD
|
Final drives: | planetary
|
Steering: | articulated power
|
Brakes: | pneumatic drum
|
Cab: | Cruiser Cab standard with air-conditioning.
|
Transmission: | 6-speed power shift
|
Transmission details ... |
Hydraulics |
Type: | closed center load sensing
|
Valves: | 4
|
Pump flow: | 36 gpm 136.3 lpm
|
Steering flow: | 35 gpm 132.5 lpm
|
Electrical |
Ground: | negative
|
Charging system: | alternator
|
Charging amps: | 75
|
Battery volts: | 12
|
