Big Bud HN320
| | 1976 - 1978 |
| HN Series | | Four-wheel Drive (4WD) tractor |
|
| Production |
| Manufacturer: | Big Bud
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Havre, Montana, USA
|
| Big Bud HN320 Power |
| Engine: | 320 hp
238.6 kW
|
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | hydrostatic power
|
| Cab: | Cab standard.
|
| Transmission: | 12-speed gear
|
 Transmission details ... |
| Hydraulics |
| Type: | open center
|
| Pump flow: | 20 gpm
75.7 lpm
|
| Total flow: | 40 gpm
151.4 lpm
|
| Steering flow: | 20 gpm
75.7 lpm
|
| Page information |
| Last update: | March 28, 2022
|
| Copyright: | Copyright 2022 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2022 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

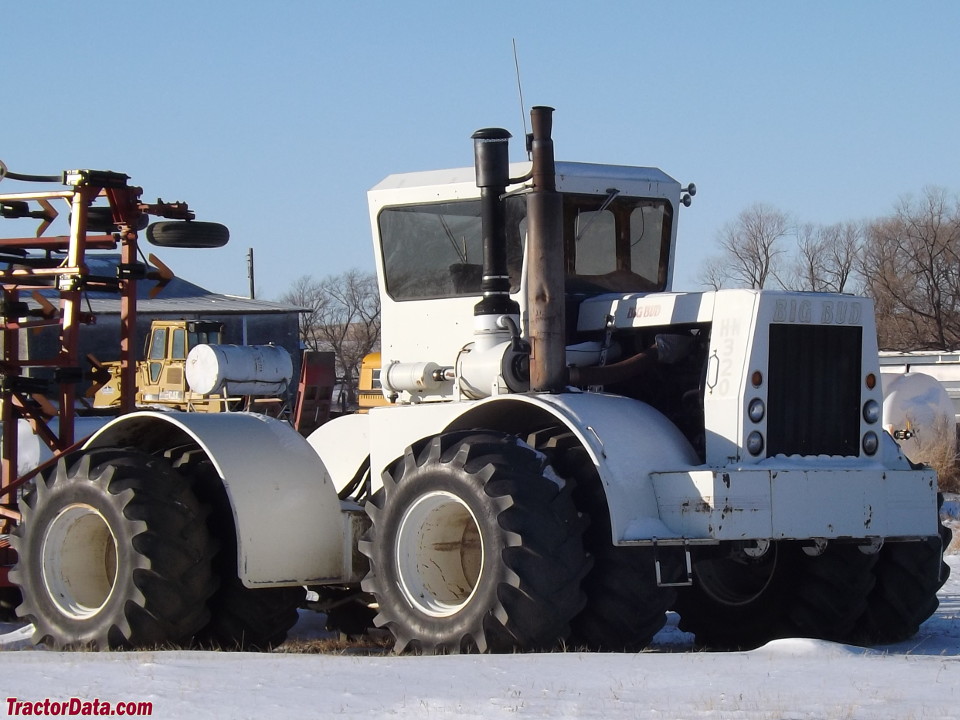

Big Bud HN320 photos...
Full dimensions and tires ...
