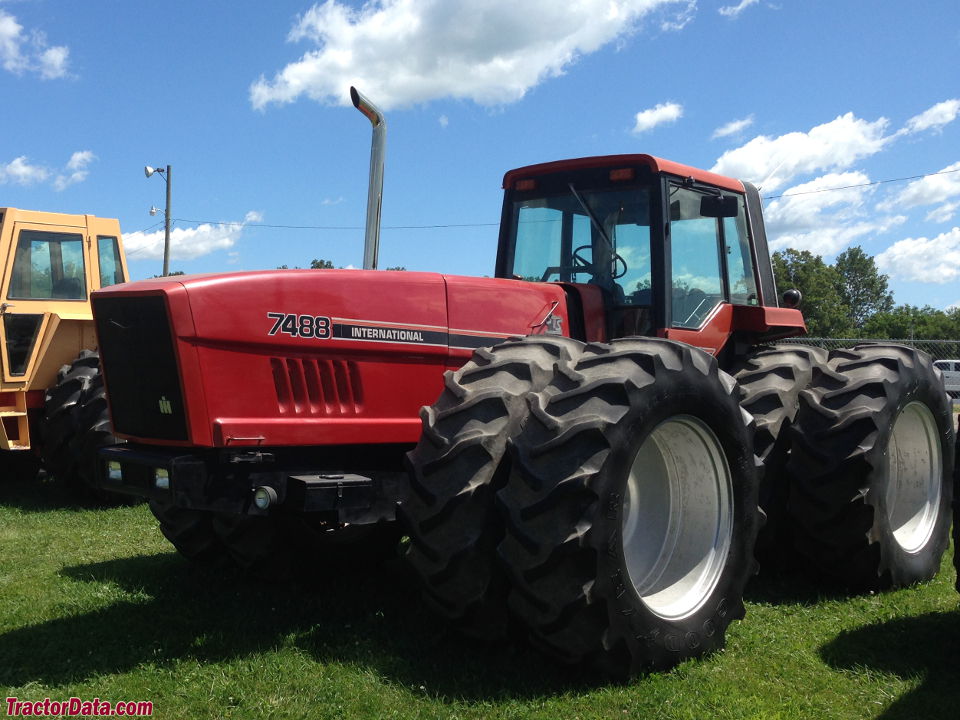

International Harvester 7488
| | 1985 |
| 70 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
7288
7488
210.0hp
235.0hp
| Production |
| Manufacturer | International Harvester
|
| Four-wheel Drive (4WD) tractor |
| Built in Rock Island, Illinois, USA |
| Total built | 16
|
| International Harvester 7488 Power |
| Engine | 235 hp
175.2 kW
|
| PTO (claimed) | 200 hp
149.1 kW
|
| Mechanical |
| Four-wheel drive |
| Differential lock | hydraulic
|
| Articulated power steering |
| Hydraulic wet disc brakes |
| Cab standard with air-conditioning. |
| Capacity |
| Fuel | 159 gal
601.8 L
|
| Hydraulic system | 43 gal
162.8 L
|
| Hydraulics |
| Type | closed center
|
| Capacity | 43 gal
162.8 L
|
| Rear valves | 2 to 4
|
| Pump flow | 28 gpm
106.0 lpm
|
| Total flow | 86 gpm
325.5 lpm
|
| Steering flow | 12 gpm
45.4 lpm
|
| Tractor hitch |
| Rear Type | III/II
|
| Control | position and draft control
|
| Rear lift | 9890 lbs
4486 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
| References |
 |
| Super 70 4-Wheel Drive Tractors published in 1985, by International Harvester |
| New Super 70 Series published in 1985, by International Harvester |
| Agricultural Equipment Reference Catalog published in 1985, by International Harvester |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on February 6, 2024 |
