| | 1976 - 1981 |
| 86 Series | | Row-Crop tractor |
|
Series map:
1086
1486
1586
144.4hp*
162.2hp*
177.8hp*
*Estimated engine power for comparison only.
| Engine Detail |
| International Harvester DT-436 |
| turbocharged diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 436 ci
7.1 L
|
| Bore/Stroke | 4.30x5.00 inches
109 x 127 mm
|
| Air cleaner | dual dry element
|
| Rated RPM | 2600
|
| Idle RPM | 700-2860
|
| Coolant capacity | 27 qts
25.6 L
|

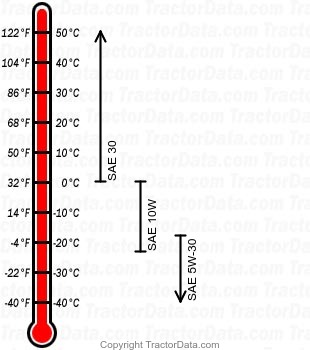

| Engine Oil |
|
| Oil capacity | 20 qts
18.9 L
|
