International Harvester 560
| | 1958 - 1963 |
| Standard-tread tractor |
|
Series map:
560
660
72.5hp
95.0hp
| Production |
| Manufacturer | International Harvester
|
| Standard-tread tractor |
| Total built | 65,982
|
| Original price | $5,500 (1963)
|
| International Harvester 560 Power |
| Engine | 72.5 hp
54.1 kW
|
| Drawbar (claimed) | 54.8 hp
40.9 kW
|
| PTO (claimed) | 59.48 hp
44.4 kW
|
| Plows | 5
|
| Drawbar (tested) | 44.83 hp
33.4 kW
|
| PTO (tested) | 61.04 hp
45.5 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| | hydrostatic power optional
|
| Independent mechanical disc brakes |
| Open operator station. |
| Capacity |
| Fuel | 33 gal (gas/diesel)
124.9 L
|
| | 37.5 gal
141.9 L
|
| Hydraulic system | 16 gal
60.6 L
|
| Hydraulics |
| Capacity | 16 gal
60.6 L
|
| Valves | 2
|
| Pump flow | 12 gpm
45.4 lpm
|
| Total flow | 12 gpm
45.4 lpm
|
| | 17 gpm (optional)
64.3 lpm
|
| Steering flow | 2.5 gpm
9.5 lpm
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|

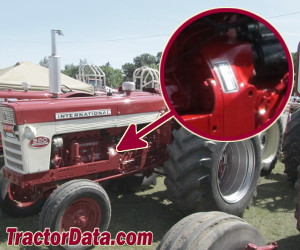

| 560 Serial Number Location |
 |
| Clutch housing, right side |
| Belt Pulley |
| Diameter | 11 inches
27 cm
|
| Width | 7.5 inches
19 cm
|
| References |
 |
| A Corporate Tragedy - The Agony of International Harvester Company by Barbara Marsh |
| Buyers Guide International Industrial Tractors & Equipment published in 1960, by International Harvester |
| Industrial Tractors and matched equipment published in 1960, by International Harvester |
| Industrial Tractors & Equipment Buyers Guide published in 1962, by International Harvester |
| Operator's Manual Farmall 460 Diesel, 560 Diesel and International 560 Diesel Tractors (1014077R1) published in 1959 |
| Operator's Manual Farmall 460, 560 and International 560 (1 014 051 R1) published in 1958 |
| Elwood Front Wheel Drive published in 1963, by International Harvester |
| Direct-Start Diesel Tractors published in 1958, by International Harvester |
