International Harvester 284
| | 1976 - 1984 |
| 84 Series | | Compact Utility tractor | | Komatsu built |
|
Series map:
254
284
24.0hp
28.0hp
| Production |
| Distributor | International Harvester
|
| Manufacturer | Komatsu
|
| Compact Utility tractor |
| Built in Japan |
| Original price was $5,000 in 1984 |
| International Harvester 284 Power |
| Engine | 30 hp
22.4 kW
|
| Drawbar (claimed) | 21 hp
15.7 kW
|
| Diesel PTO (claimed) | 27.4 hp
20.4 kW
|
| Gasoline PTO (claimed) | 25.8 hp
19.2 kW
|
| Drawbar (tested) | 21.98 hp
16.4 kW
|
| PTO (tested) | 27.47 hp
20.5 kW
|
 Performance test details ... |
| Mechanical |
| Drive | 4x2 2WD
|
| | 4x4 MFWD 4WD *Optional after 1982. Available only with the diesel engine.
|
| Manual steering |
| Hydraulic wet disc brakes |
| Open operator station. Optional two-post ROPS with canopy. |
| Capacity |
| Fuel | 8.7 gal
32.9 L
|
| Hydraulic system | 3.4 gal
12.9 L
|
| Hydraulics |
| Capacity | 3.4 gal
12.9 L
|
| Pressure | 1920 psi
132.4 bar
|
| Total flow | 6 gpm
22.7 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift (at ends) | 2000 lbs
907 kg
|
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| Rear PTO Type | 540/1000 (1.375)
|
| Engine RPM | 540@2160
|
| | 1000@2408
|

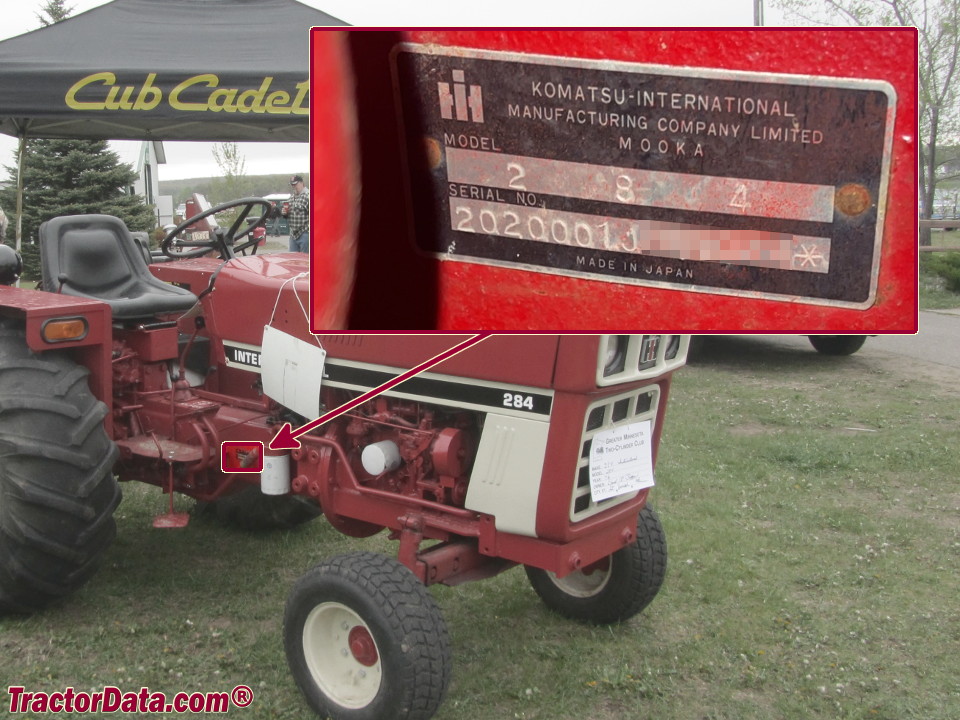

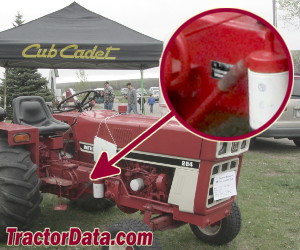

| 284 Serial Number Location |
 |
| In front of rear axle on the right side of the frame |
| 284 Serial Numbers |
| 1976 | 8005 (gasoline)
|
| 1977 | 8125 (gasoline)
|
| 1978 | 10705 (gasoline)
|
| 1979 | 12425 (gasoline)
|
| 1980 | 13207 (gasoline)
|
| 1981 | 13419 (gasoline)
|
| 1980 | 670 (2WD diesel)
|
| 1981 | 2146 (2WD diesel)
|
| 1982 | 2999 (2WD diesel)
|
| 1983 | 3343 (2WD diesel)
|
| 1984 | 4561 (2WD diesel)
|
| 1980 | 1211 (4WD diesel)
|
| 1981 | 2267 (4WD diesel)
|
| 1983 | 3803 (4WD diesel)
|
| 1984 | 4511 (4WD diesel)
|
FAQ: How to read a serial number table.
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Gas Charging amps | 35
|
| Diesel Charging amps | 20
|
| Battery volts | 12
|
| References |
 |
| 1985 Farm Equipment Buyer's Guide published by CaseIH |
| A Complete Reference to International Power Lawn Products published in 1977, by International Harvester |
| 1978 Buyer's Guide published by International Harvester |
| 1979 Buyer's Guide published by International Harvester |
| Buyer's Guide 1981 published by International Harvester |
| Buyer's Guide 1982 published by International Harvester |
| 200 Series Tractors published by International Harvester |
| New International Compact Tractor published in 1976, by International Harvester |
| 284 Compact Tractor published in 1977, by International Harvester |
| 284 Compact Tractors published in 1981, by International Harvester |
| Compact workhorses in your choice of 2 or 4-wheel drive published in 1982, by International Harvester |
| 284 Compact Tractors published in 1984, by International Harvester |
| 284 Compact Tractors published in 1984, by International Harvester |
