Tractors > McCormick-Deering > W-9

McCormick-Deering W-9 Tests



McCormick-Deering W-9 tractor photo
1940 - 1953
Standard-tread tractor
Tractor Tests
NTTL 369: gasoline 5-speed 2WD
NTTL 371: distillate 5-speed 2WD
Nebraska Tractor Test 369

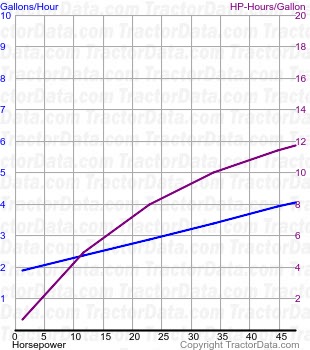

W-9 fuel use from test 369
Nebraska Tractor Test 369
Gasoline 5-speed 2WD
May 21 - June 17, 1941
Link: Nebraska Tractor Test 369 file
Belt power (max)49.40 hp
36.8 kW
Belt fuel use (max)4.2 gal/hour
15.9 l/hour
Drawbar performance
Max power44.15 hp
32.9 kW
Gear 3 used for power test.
Max pull6,414 lbs
2909 kg
Gear 1 used for pull test.
Nebraska Tractor Test 371

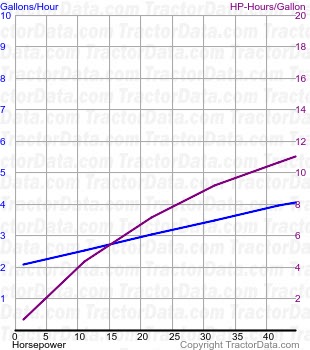

W-9 fuel use from test 371
Nebraska Tractor Test 371
Distillate 5-speed 2WD
June 4 - 17, 1941
Link: Nebraska Tractor Test 371 file
Belt power (max)46.36 hp
34.6 kW
Belt fuel use (max)4.3 gal/hour
16.3 l/hour
Drawbar performance
Max power42.67 hp
31.8 kW
Gear 3 used for power test.
Max pull6,577 lbs
2983 kg
Gear 1 used for pull test.
