Ford 9000 Transmission


Ford 9000 tractor photo
1970 - 1972
Row-Crop tractor
Series:80009000
9600
Transmissions overview
8-speed gear
16-speed two-speed power shift
Transmission
Type:gear
Gears:8 forward and 2 reverse
Oil capacity:64 qts
60.6 L
Four gears with two ranges. The up-shift from 3-to-4 and 7-to-8 synchronized. Tractor must be stopped, and clutch used, for all other shifts.
Speeds
9000  gear speeds
Transmission
Transmission:Dual Power
Type:two-speed power shift
Gears:16 forward and 4 reverse
Oil capacity:69 qts
65.3 L
Dual Power adds a power shift to the basic eight-speed transmission. Two foot buttons control the shift, the left button engages direct drive (normal) mode while the right "power drive" button provides the lower range. The power drive button must be down for stationary PTO work.
Speeds

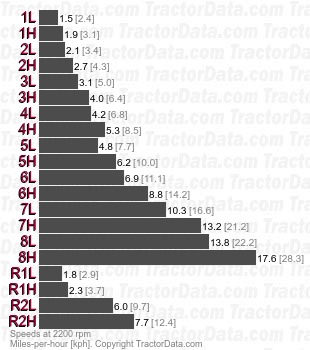

9000 Dual Power two-speed power shift speeds
