Ford 9000 Engine



Ford 9000 tractor photo
1970 - 1972
Row-Crop tractor
Series map:
8000
9000
115.5hp
145.0hp
Engine Detail
Ford
turbocharged diesel
6-cylinder
liquid-cooled
Displacement401 ci
6.6 L
Bore/Stroke4.40x4.40 inches
112 x 112 mm
Power145 hp
108.1 kW
Air cleanerdry
Compression16.5:1
Rated RPM2200
Torque374 lb-ft
507.1 Nm
Torque RPM1600
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity24 qts
22.7 L
 25.5 qts*Coolant capacity with cab heater.
24.1 L
Intake valve clearance0.015 inches*Hot
0.381 mm
Exhaust valve clearance0.018 inches*Hot
0.457 mm
Engine Oil

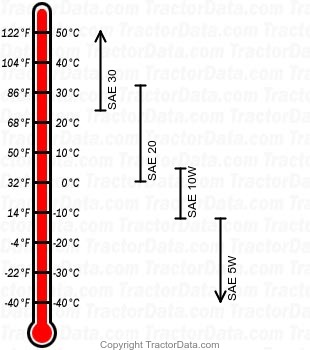

9000 diesel engine oil chart
Oil capacity14 qts
13.2 L
