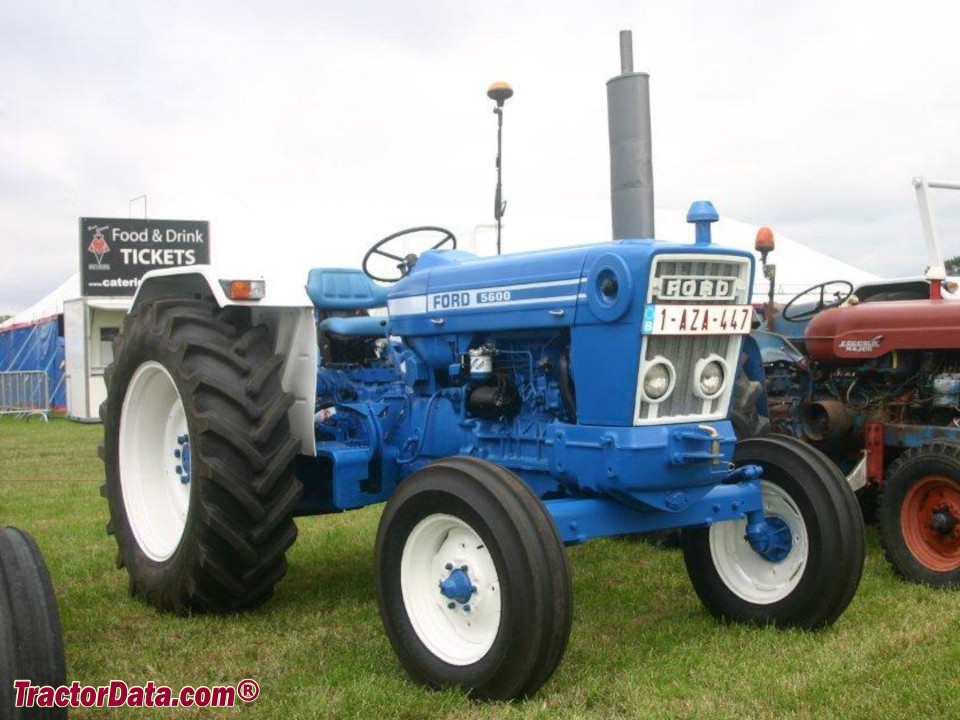

Ford 5600
|
|
| Series: | 5600 | → 6600 |
| Production | |
| Manufacturer: | Ford |
| Type: | Row-Crop tractor |
| Original price: | $26,000 (1981 ) |
| Ford 5600 Power | |
| Engine (gross): | 69 hp 51.5 kW |
| Engine (net): | 65 hp 48.5 kW |
| PTO (claimed): | 60.5 hp 45.1 kW |
| Drawbar (tested): | 50.09 hp 37.4 kW |
| PTO (tested): | 60.49 hp 45.1 kW |
| Ford 5600 Engines | |
| Ford 3.8L 4-cyl diesel | |
| Ford 4.2L 4-cyl diesel | |
| Fuel tank: | 20 gal 75.7 L *Option station tractor. |
| 19 gal 71.9 L *With cab. | |
| 13 gal 49.2 L *Optional auxiliary tank. | |
 Engine details ... | |
| Mechanical | |
| Chassis: | 4x2 2WD |
| 4x4 MFWD 4WD | |
| Final drives: | inboard planetary |
| Differential lock: | mechanical rear |
| Steering: | power |
| Brakes: | differential mechanical wet disc |
| Cab: | Open operator station. Two-post ROPS available. Cab optional with available heat and air-conditioning. |
| Transmissions: | 16-speed two-speed power shift |
| 8-speed gear | |
 Transmission details ... | |
| Photos | |
 | |
 Ford 5600 photos... | |
| Hydraulics | |
| Pressure: | 2100 psi 144.8 bar |
| Valves: | 1 or 2 |
| Pump flow: | 9.7 gpm 36.7 lpm |
| Tractor hitch | |
| Rear Type: | II |
| Control: | top-link draft sensing |
| Rear lift: | 3340 lbs 1515 kg |
| Power Take-off (PTO) | |
| Rear PTO: | independent |
| Rear RPM: | 540 (1.375) |
| 540/1000*Optional | |
| Engine RPM: | 540@1900 |
| Dimensions & Tires | |
| Wheelbase: | 87.5 inches 222 cm |
| Weight: | 5475 to 7310 pounds |
| Front tire: | 7.50-16 |
| Rear tire: | 16.9-30 |
 Full dimensions and tires ... | |
| Ford 5600 attachments | |
| front-end loader | |
 Attachment details ... |
| 5600 Serial Numbers | |
| 1975: | C450700 |
| 1976: | C490300 |
| 1977: | C527300 |
| 1978: | C560500 |
| 1979: | C595800 |
| 1980: | C635700 |
| 1981: | C660700 |
| Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 32 |
| 51*Optional on open station tractor, standard with cab. | |
| Battery volts: | 12 |
| Battery AH: | 128 |
