Ford 2600 Tests


Ford 2600 tractor photo
1975 - 1981
Utility tractor
Series map:
2600
3600
36.5hp
48.0hp
Tractor Tests
NTTL 1207: gasoline 8-speed 2WD
NTTL 1222: diesel 8-speed 2WD
Nebraska Tractor Test 1207

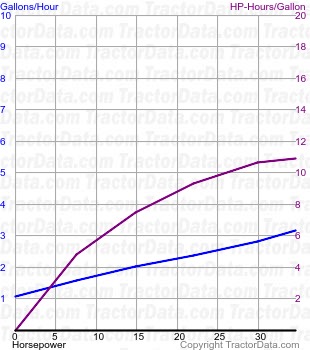

2600 fuel use from test 1207
Nebraska Tractor Test 1207
Gasoline 8-speed 2WD
March 25 - April 23, 1976
Link: Nebraska Tractor Test 1207 file
PTO performance
Power at rated engine speed34.18 hp
25.5 kW
Fuel use3.0 gal/hour
11.4 l/hour
Power at rated PTO speed32.07 hp
23.9 kW
Fuel use2.8 gal/hour
10.6 l/hour
Drawbar performance
Max power28.76 hp
21.4 kW
Fuel use3.0 gal/hour
11.4 l/hour
Gear 4 used for power test.
Max pull4,455 lbs
2020 kg
Gear 2 used for pull test.
Nebraska Tractor Test 1222

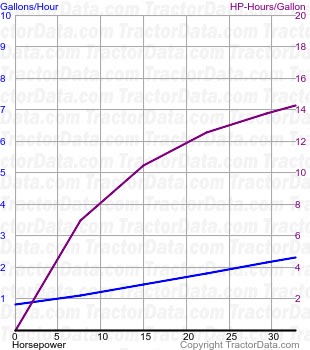

2600 fuel use from test 1222
Nebraska Tractor Test 1222
Diesel 8-speed 2WD
September 20 - 28, 1976
Link: Nebraska Tractor Test 1222 file
PTO performance
Power at rated engine speed32.47 hp
24.2 kW
Fuel use2.3 gal/hour
8.7 l/hour
Power at rated PTO speed30.76 hp
22.9 kW
Fuel use2.1 gal/hour
7.9 l/hour
Drawbar performance
Max power27.51 hp
20.5 kW
Fuel use2.3 gal/hour
8.7 l/hour
Gear 4 used for power test.
Max pull4,452 lbs
2019 kg
Gear 2 used for pull test.
