Ford 1210


Ford 1210 tractor photo
1983 - 1986
Ten Compact Series
Compact Utility tractor
Shibaura built
Series map:
1110
1210
1310
13.0hp
16.0hp
19.0hp
Production
DistributorFord
ManufacturerShibaura
Compact Utility tractor
Built in Japan
Original price was $6,952 in 1986
Ford 1210 Engine
Shibaura 0.9L 3-cyl diesel
Engine details ...
Ford 1210 Transmissions
10-speed gear
hydrostatic
15-speed creeper
Transmission details ...
Ford 1210 Power
Engine (net)16 hp
11.9 kW
PTO (claimed)13.5 hp
10.1 kW
Plows1 (12-inch)
Mechanical
Two- or four-wheel drive
Final drivesspur gear
Differential lockmechanical rear
Manual steering
Differential mechanical drum brakes
Two-post fixed ROPS.
Capacity
Fuel4.8 gal
18.2 L
Hydraulic system4.25 gal
16.1 L
Hydraulics
Typeopen center
Capacity4.25 gal
16.1 L
Pressure1849 psi
127.5 bar
Total flow4.3 gpm
16.3 lpm
Tractor hitch
Rear TypeI
Controlposition control
Rear lift (at ends)881 lbs
399 kg
Power Take-off (PTO)
Gear Rear PTOtransmission
Hydro Rear PTOlive
Rear RPM540 (1.375)
Engine RPM540@2570
Hydro Mid PTOindependent
Mid RPM1000
Front PTOoptional
Clutchelectric
Dimensions & Tires
Wheelbase55.1 inches
139 cm
Weight1329 to 1442 pounds
Front tire4-12
2WD Rear tire8-16
Full dimensions and tires ...
Ford 1210 attachments
48" mid-mount mower deck
60" mid-mount mower deck
48" rear-mount mower deck
snowblower
front-end loader
backhoe
Attachment details ...

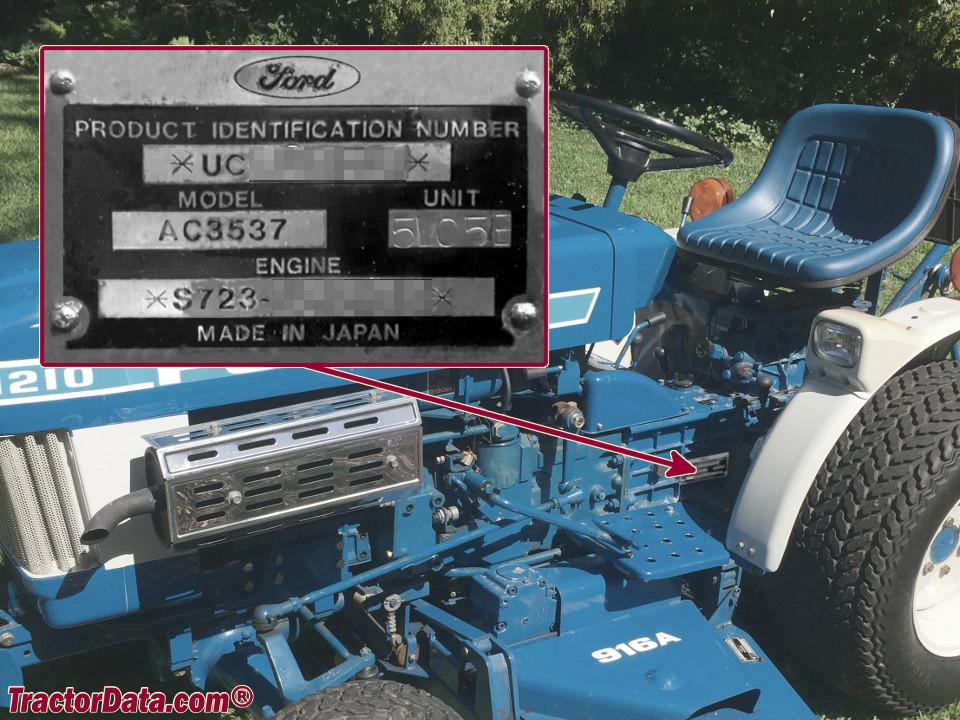

1210 Serial Number Location
Ford 1210 serial number location
Left side of transmission.
1210 Serial Numbers
1983UC00001
1984UC01851
1985UC03937
1986UC07232

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps35
Charging volts12
Battery volts12
Battery AH72
References
1210 references literature
Ford Shop Manual by Peter Letourneau
Farm Loaders published in 1988, by Ford
Mid-Mount Finishing Mowers published in 1987, by Ford
1000 Series Tractors published in 1985, by Ford
1000 Series Tractors published in 1987, by Ford
Salesman's Reference published in 1986, by Ford
Sales Reference Guide published in 1986, by Ford
