Ford FW-40
|
|
| Production | |
| Distributor | Ford |
| Manufacturer | Steiger |
| Four-wheel Drive (4WD) tractor | |
| Built in Fargo, North Dakota, USA | |
| Original price was $66,572 in 1979 | |
| Ford FW-40 Engine | |
| Cummins 14.8L 8-cyl diesel | |
 Engine details ... |
| Ford FW-40 Transmissions | |
| 10-speed | |
| 20-speed | |
 Transmission details ... |
| Ford FW-40 Power | |
| Engine (gross) | 295 hp 220.0 kW |
| Drawbar (claimed) | 230 hp 171.5 kW |
| PTO (claimed) | 57 hp (540 RPM) 42.5 kW |
| 105 hp (1000 RPM) 78.3 kW | |
| Drawbar (tested) | 227.48 hp 169.6 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Final drives | outboard planetary |
| Articulated power steering | |
| Hydraulic dry disc brakes | |
| Cab standard with air-conditioning. | |

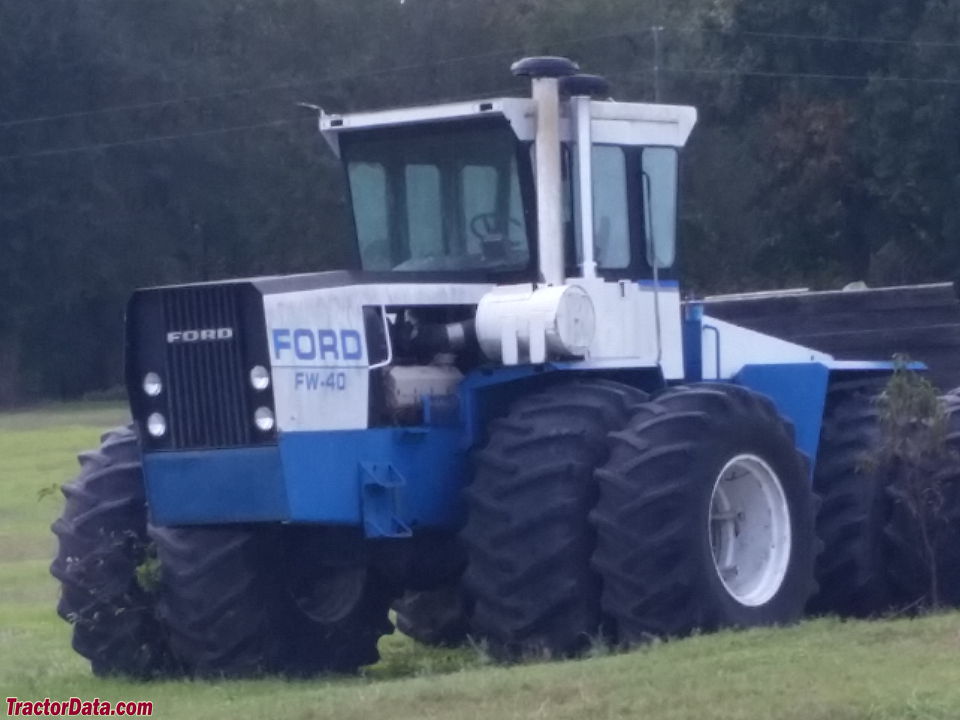

| Photos | |
 | |
 Ford FW-40 photos... | |
| Capacity | |
| Fuel | 225 gal 851.6 L |
| Hydraulic system | 25 gal 94.6 L |
| Hydraulics | |
| Type | open center |
| Capacity | 25 gal 94.6 L |
| Pressure | 2250 psi 155.1 bar |
| Valves | 4 or 5 |
| Pump flow | 30.1 gpm 113.9 lpm |
| SCV flow | 20 gpm 75.7 lpm |
| Tractor hitch | |
| Rear Type | III |
| Rear lift (at 24"/610mm) | 12500 lbs 5670 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent *Optional. Hydrostatic-driven PTO |
| Rear PTO Type | 540/1000 |
| Dimensions & Tires | |
| Wheelbase | 132.5 inches 336 cm |
| Weight | 30630 lbs 13893 kg |
| Front tire | 18.4x38 |
| Rear tire | 18.4x38 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 90 |
| Batteries | 4 |
| Battery CCA | 475 *Each |
| Battery volts | 12 |
| References | |
 | |
| 4-wheel drive tractors published in 1977, by Ford |
