Tractors > Ford > TW-10

Ford TW-10 Engine



Ford TW-10 tractor photo
1979 - 1983
TW Series
Row-Crop tractor
Series map:
TW-10
TW-20
123.0hp
144.5hp
Engine Detail
Ford
diesel
6-cylinder
liquid-cooled
Displacement401 ci
6.6 L
Bore/Stroke4.40x4.40 inches
112 x 112 mm
Power123 hp
91.7 kW
Power (gross)127.9 hp
95.4 kW
Air cleanerdry with precleaner
Compression16.3:1
Rated RPM2300
Torque314 lb-ft
425.8 Nm
Torque RPM1800
Firing order1-5-3-6-2-4
Starter volts12
Coolant capacity21 qts
19.9 L
 22.5 qts (with heater)
21.3 L
Intake valve clearance0.014-0.016 inches
0.356 mm
Exhaust valve clearance0.017-0.019 inches
0.432 mm

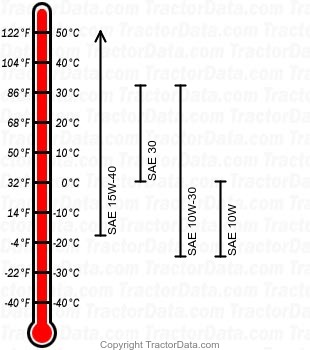

Engine Oil
TW-10 diesel engine oil chart
Oil capacity20 qts
18.9 L
