Tractors > Allis Chalmers > 6080

Allis Chalmers 6080



Allis Chalmers 6080 tractor photo
1980 - 1985
6000 Series
Row-Crop tractor
Series map:
6070
6080
78.6hp*
93.0hp*
*Estimated engine power for comparison only.
Production
ManufacturerAllis Chalmers
Row-Crop tractor
Built in West Allis, Wisconsin, USA
Total built6,698
Original price was $30,000 in 1985
Allis Chalmers 6080 Engine
Allis Chalmers 3.3L 4-cyl diesel
Engine details ...
Allis Chalmers 6080 Transmission
12-speed synchronized
Transmission details ...
Allis Chalmers 6080 Power
Drawbar (tested)70.50 hp
52.6 kW
PTO (tested)83.66 hp
62.4 kW
Performance test details ...
Mechanical
Drive4x2 2WD
 4x4 MFWD 4WD (optional)
Steeringhydrostatic power
Differential hydraulic wet disc brakes
Four-post ROPS canopy. Optional cab and air-conditoning.
Photos
Allis-Chalmers 6080 with two-wheel drive.
Allis Chalmers 6080 photos...
Capacity
Fuel32 gal
121.1 L
Rear diff.37 qts
35.0 L
Hydraulics
Typeopen center
Valves2
Pump flow11.4 gpm
43.1 lpm
Total flow19 gpm
71.9 lpm
Tractor hitch
Rear TypeII
Rear lift (at 24"/610mm)4,500 lbs
2041 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
Wheelbase96 inches (2WD)
243 cm
 95.3 inches (4WD)
242 cm
Weight6,500 lbs
2948 kg
Front tire7.50-16
Rear tire18.4-34
Full dimensions and tires ...
Allis Chalmers 6080 attachments
front-end loader
Attachment details ...
6080 Serial Number Location

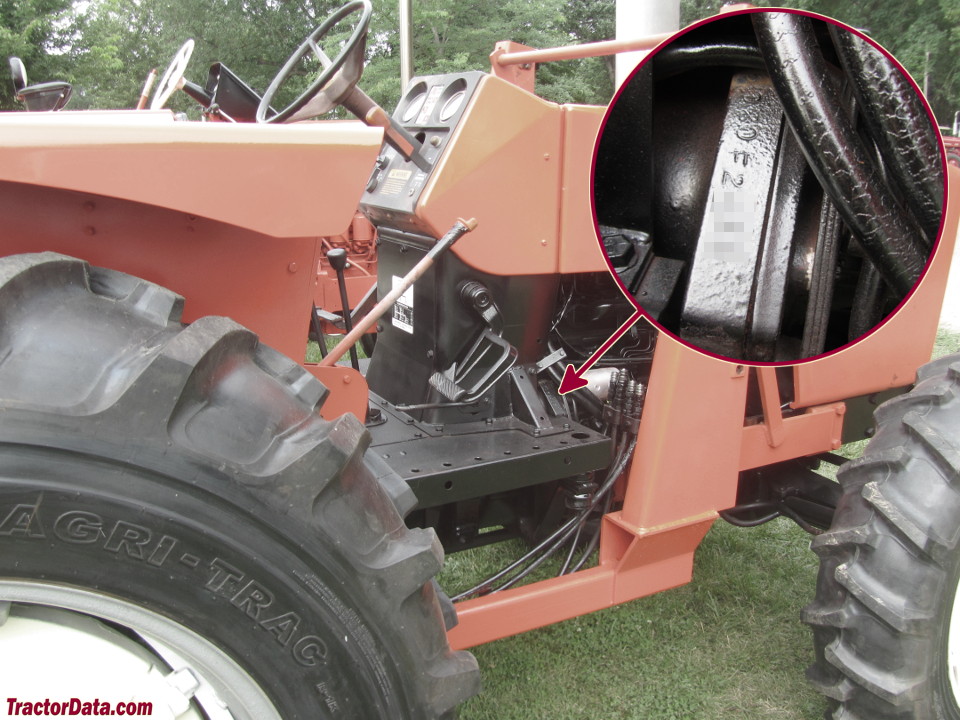

Allis Chalmers 6080 serial number location
Serial number on the engine adapter housing, right side
6080 Serial Numbers
19801001
19811152
19823002
19834567
19845780
19856853
Final7698

FAQ: How to read a serial number table.
Electrical
Charging systemalternator
Charging amps72
Batteries1
 2 (optional)
Battery volts12
References
6080 references literature
460 Loader - the Quick Detachable Loader published in 1981, by Allis Chalmers
Detachable Loaders - Ready For Any Task published in 1982, by Allis Chalmers
6080 - 6060 published in 1982, by Allis Chalmers
