Tractors > Allis Chalmers > WD45

Allis Chalmers WD45 Tests



Allis Chalmers WD45 tractor photo
1953 - 1957
Row-Crop tractor
Series map:
WD45
48.0hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 499: gasoline 4-speed 2WD
NTTL 511: distillate 4-speed 2WD
NTTL 512: LP gas 4-speed 2WD
NTTL 563: diesel 4-speed 2WD
Nebraska Tractor Test 499

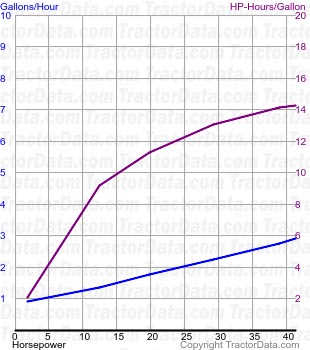

WD45 fuel use from test 499
Nebraska Tractor Test 499
Gasoline 4-speed 2WD
July 29 - August 10, 1953
Link: Nebraska Tractor Test 499 file
Belt power (max)43.21 hp
32.2 kW
Belt fuel use (max)3.8 gal/hour
14.4 l/hour
Drawbar performance
Max power37.8 hp
28.2 kW
Gear 3 used for power test.
Max pull5,441 lbs
2468 kg
Gear 1 used for pull test.
Nebraska Tractor Test 511

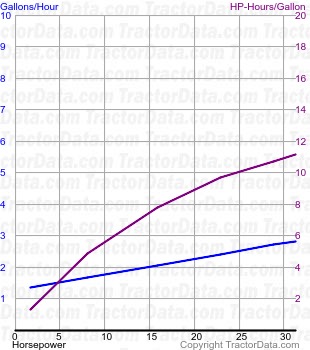

WD45 fuel use from test 511
Nebraska Tractor Test 511
Distillate 4-speed 2WD
October 26 - 31, 1953
Link: Nebraska Tractor Test 511 file
Belt power (max)33.01 hp
24.6 kW
Belt fuel use (max)3.3 gal/hour
12.5 l/hour
Drawbar performance
Max power29.49 hp
22.0 kW
Gear 3 used for power test.
Max pull4,634 lbs
2101 kg
Gear 1 used for pull test.
Nebraska Tractor Test 512

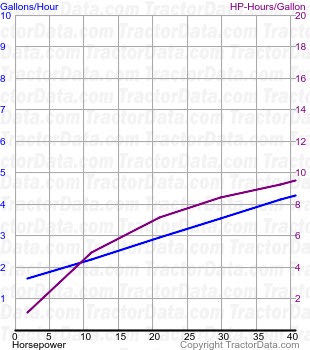

WD45 fuel use from test 512
Nebraska Tractor Test 512
LP gas 4-speed 2WD
October 26 - November 4, 1953
Link: Nebraska Tractor Test 512 file
Belt power (max)44.13 hp
32.9 kW
Belt fuel use (max)5.0 gal/hour
18.9 l/hour
Drawbar performance
Max power38.53 hp
28.7 kW
Gear 3 used for power test.
Max pull5,421 lbs
2458 kg
Gear 1 used for pull test.
Nebraska Tractor Test 563

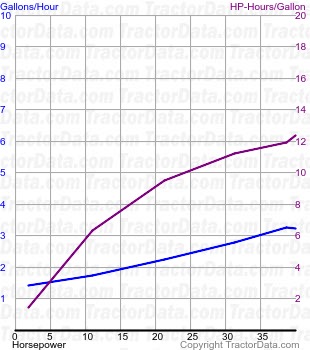

WD45 fuel use from test 563
Nebraska Tractor Test 563
Diesel 4-speed 2WD
October 4 - 11, 1955
Link: Nebraska Tractor Test 563 file
Belt power (max)43.29 hp
32.3 kW
Belt fuel use (max)3.1 gal/hour
11.7 l/hour
Drawbar performance
Max power39.50 hp
29.5 kW
Gear 3 used for power test.
Max pull5908 lbs
2679 kg
Gear 1 used for pull test.
