Tractors > Allis Chalmers > WD

Allis Chalmers WD Tests



Allis Chalmers WD tractor photo
1948 - 1953
Row-Crop tractor
Series map:
WD
28.9hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 399: tractor fuel 4-speed 2WD
NTTL 440: gasoline 4-speed 2WD
Nebraska Tractor Test 399

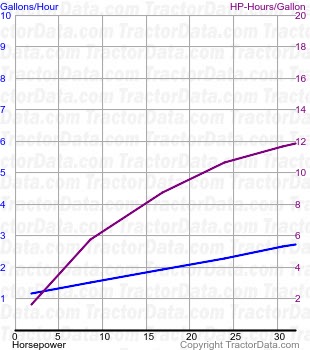

WD fuel use from test 399
Nebraska Tractor Test 399
Tractor fuel 4-speed 2WD
July 16 - 30, 1948
Link: Nebraska Tractor Test 399 file
Belt power (max)26.14 hp
19.5 kW
Belt fuel use (max)2.7 gal/hour
10.2 l/hour
Drawbar performance
Max power24.31 hp
18.1 kW
Gear 2 used for power test.
Max pull3,423 lbs
1552 kg
Gear 1 used for pull test.
Nebraska Tractor Test 440
WD fuel use from test 440
Nebraska Tractor Test 440
Gasoline 4-speed 2WD
May 17 - June 1, 1950
Link: Nebraska Tractor Test 440 file
Belt power (max)34.63 hp
25.8 kW
Belt fuel use (max)3.2 gal/hour
12.1 l/hour
Drawbar performance
Max power30.23 hp
22.5 kW
Gear 3 used for power test.
Max pull4,304 lbs
1952 kg
Gear 1 used for pull test.
