Tractors > John Deere > 5200

John Deere 5200 Tests



John Deere 5200 tractor photo
1992 - 1997
5000 Utility Series
Utility tractor
Series map:
5200
5300
45.6hp
55.9hp
OCED Tractor Test 1660

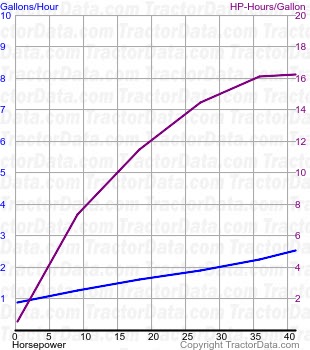

5200 fuel use from test 115
OCED Tractor Test 1660
Diesel 9-speed 4WD
September 17 - October 7, 1992
Link: OCED Tractor Test 1660 file
PTO performance
Max power41.90 hp
31.2 kW
Fuel use2.5 gal/hour
9.5 l/hour
Power at rated engine speed41.12 hp
30.7 kW
Fuel use2.5 gal/hour
9.5 l/hour
Drawbar performance
Max power35.74 hp
26.7 kW
Fuel use2.6 gal/hour
9.8 l/hour
Max pull5162 lbs
2341 kg
