Tractors > John Deere > 4760

John Deere 4760 Tests



John Deere 4760 tractor photo
1992 - 1994
4060 Series
Row-Crop tractor
Series map:
4560
4760
4960
172.2hp*
194.4hp*
222.2hp*
*Estimated engine power for comparison only.
Tractor Tests
OECD 1621: diesel Powershift 4WD
OECD 1630: diesel Quad-Range 2WD
OCED Tractor Test 1621

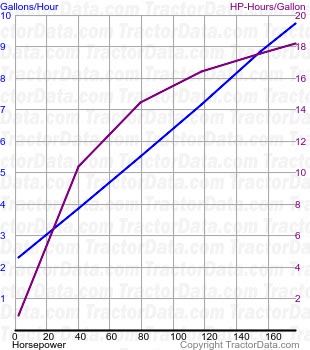

4760 fuel use from test 059
OCED Tractor Test 1621
Diesel Powershift 4WD
April 1 - May 1, 1989
Link: OCED Tractor Test 1621 file
PTO performance
Max power178.96 hp
133.5 kW
Fuel use9.6 gal/hour
36.3 l/hour
Power at rated engine speed177.06 hp
132.0 kW
Fuel use9.7 gal/hour
36.7 l/hour
Drawbar performance
Max power147.76 hp
110.2 kW
Fuel use9.7 gal/hour
36.7 l/hour
Gear 12 used for power test.
Max pull21,481 lbs
9743 kg
Gear 3 used for pull test.
OCED Tractor Test 1630

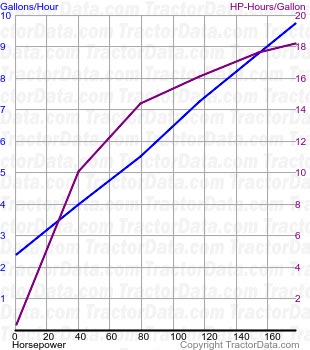

4760 fuel use from test 068
OCED Tractor Test 1630
Diesel Quad-Range 2WD
September 1 - October 1, 1989
Link: OCED Tractor Test 1630 file
PTO performance
Max power180.35 hp
134.5 kW
Fuel use9.6 gal/hour
36.3 l/hour
Power at rated engine speed177.11 hp
132.1 kW
Fuel use9.7 gal/hour
36.7 l/hour
Drawbar performance
Max power156.97 hp
117.1 kW
Fuel use9.6 gal/hour
36.3 l/hour
Max pull19,898 lbs
9025 kg
