Tractors > John Deere > 4050

John Deere 4050 Tests



John Deere 4050 tractor photo
1983 - 1988
50 Series
Row-Crop tractor
Series map:
4050
4250
130.0hp
144.0hp
Tractor Tests
NTTL 1457: 466 diesel Power Shift 2WD
NTTL 1474: 466 diesel Quad-Range 2WD
NTTL 1590: 359 diesel Quad-Rang 2WD
NTTL 1591: 359 diesel Power Shift 2WD
Nebraska Tractor Test 1457

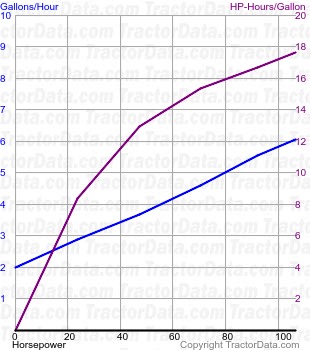

4050 fuel use from test 1457
Nebraska Tractor Test 1457
466 diesel Power Shift 2WD
October 12 - November 11, 1982
Link: Nebraska Tractor Test 1457 file
PTO performance
Power at rated engine speed100.95 hp
75.3 kW
Fuel use6.7 gal/hour
25.4 l/hour
Drawbar performance
Max power83.95 hp
62.6 kW
Fuel use6.7 gal/hour
25.4 l/hour
Gear 10 used for power test.
Max pull11,058 lbs
5015 kg
Gear 4 used for pull test.
Nebraska Tractor Test 1474

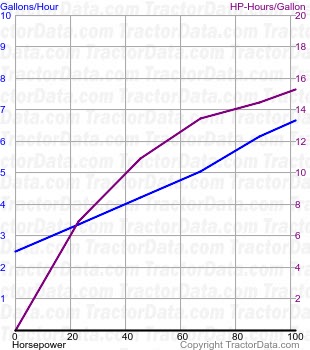

4050 fuel use from test 1474
Nebraska Tractor Test 1474
466 diesel Quad-Range 2WD
April 1 - 19, 1983
Link: Nebraska Tractor Test 1474 file
PTO performance
Power at rated engine speed101.49 hp
75.7 kW
Fuel use6.7 gal/hour
25.4 l/hour
Drawbar performance
Max power90.38 hp
67.4 kW
Fuel use6.7 gal/hour
25.4 l/hour
Max pull10,331 lbs
4686 kg
Nebraska Tractor Test 1590

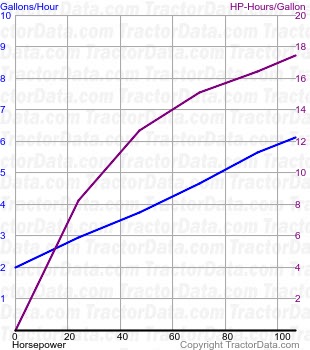

4050 fuel use from test 1590
Nebraska Tractor Test 1590
359 diesel Quad-Rang 2WD
April 1 - 9, 1986
Link: Nebraska Tractor Test 1590 file
PTO performance
Power at rated engine speed105.89 hp
79.0 kW
Fuel use6.1 gal/hour
23.1 l/hour
Drawbar performance
Max power94.99 hp
70.8 kW
Fuel use6.2 gal/hour
23.5 l/hour
Max pull11,381 lbs
5162 kg
Nebraska Tractor Test 1591
4050 fuel use from test 1591
Nebraska Tractor Test 1591
359 diesel Power Shift 2WD
April 1 - 16, 1986
Link: Nebraska Tractor Test 1591 file
PTO performance
Power at rated engine speed105.69 hp
78.8 kW
Fuel use6.1 gal/hour
23.1 l/hour
Drawbar performance
Max power88.28 hp
65.8 kW
Fuel use6.0 gal/hour
22.7 l/hour
Gear 10 used for power test.
Max pull11,378 lbs
5161 kg
Gear 4 used for pull test.
