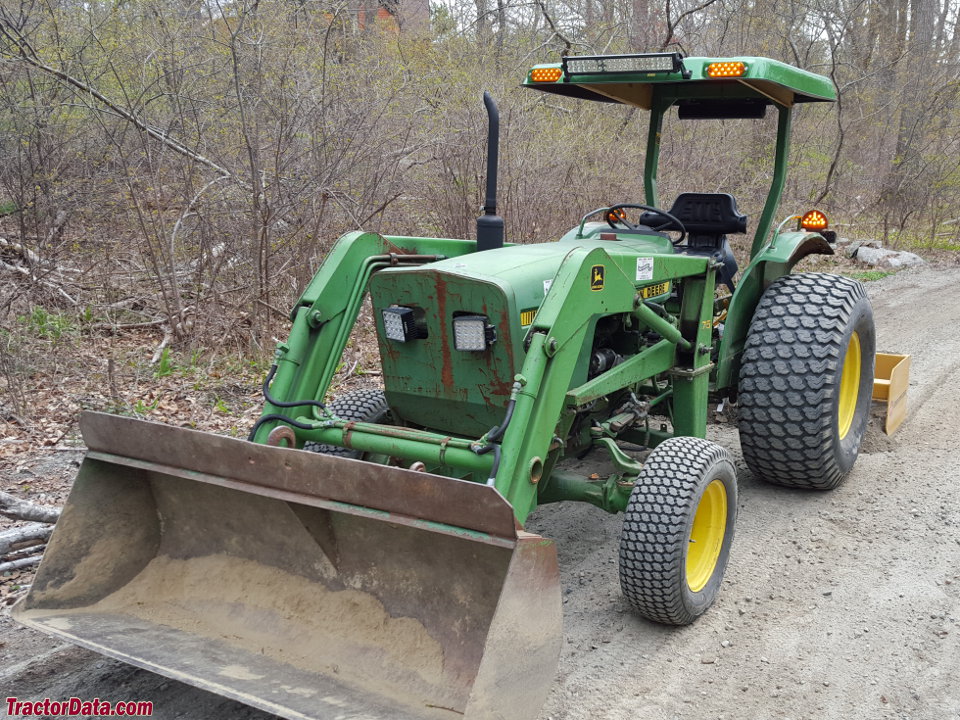

John Deere 1050
| | 1980 - 1989 |
| 50 Compact Series | | Compact Utility tractor | | Yanmar built |
|
Series map:
950
1050
31.0hp
37.0hp
| Production |
| Distributor | John Deere
|
| Manufacturer | Yanmar
|
| Compact Utility tractor |
| Built in Japan |
| Original price | $10,415 (1983 )
|
| $15,000 (1989 )
|
| John Deere 1050 Power |
| Engine (gross) | 37 hp
27.6 kW
|
| Drawbar (claimed) | 28 hp
20.9 kW
|
| PTO (claimed) | 33 hp
24.6 kW
|
| Drawbar (tested) | 27.25 hp
20.3 kW
|
| PTO (tested) | 33.41 hp
24.9 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Manual steering |
| Differential mechanical internal expanding shoe brakes |
| Two-post ROPS. |
| Capacity |
| Fuel | 11 gal
41.6 L
|
| Hydraulic system | 6.875 gal
26.0 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 6.875 gal
26.0 L
|
| Pressure | 2030 psi
140.0 bar
|
| Pump flow | 7.5 gpm
28.4 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | mechanical center-link depth sensing
|
| Power Take-off (PTO) |
| Rear PTO | live *Two-stage foot clutch.
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 540@2260
|
| 1050 Serial Number Location |
 |
| Serial number plate on the rear of the John Deere 1050, below the PTO shaft. |
| Electrical |
| Ground | negative
|
| Battery volts | 12
|
| References |
 |
| Consumer Products Price List published in 1983, by John Deere |
| Grounds Care Equipment Purchasing Guide published in 1983, by John Deere |
| Compact Utility/Utility Tractors Product Information Handbook published in 1983, by John Deere |
| Operator's Manual 850, 950 and 1050 Tractors (OMRW19870) published in 1984 |
| John Deere tractors 22 to 50 HP published in 1980 |
| Compact Utility Diesel Tractors 14.5 to 40 PTO hp published in 1982, by John Deere |
| Diesel Tractors 14.5 to 60 PTO hp published in 1984, by John Deere |
| Mechanical Front-Wheel Drive published in 1984, by John Deere |
