John Deere 8650 Transmission


John Deere 8650 tractor photo
1982 - 1988
8050 Series
Four-wheel Drive (4WD) tractor
8640
Series:845086508850
8760
Transmission
Transmission:Quad-Range
Type:partial power shift
Gears:16 forward and 6 reverse
Clutch:Perma-Clutch hydraulic wet discs
Oil capacity:150 qts
142.0 L
Tractor must be stopped to select one of four ranges. Clutchless power shift between speeds 1-2 and 3-4 in range. A synchronized shift (using clutch) can be made between 2 and 3 in range.
Speeds
18.4-38 tires

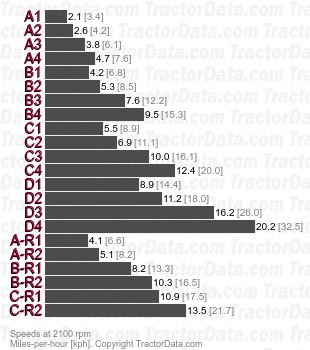

8650 Quad-Range partial power shift speeds
