Tractors > John Deere > 7810

John Deere 7810 Engine



John Deere 7810 tractor photo
1997 - 2003
7010 Series
Row-Crop tractor
Series map:
7710
7810
155.0hp
175.0hp
Engine Detail
John Deere PowerTech
turbocharged aftercooled diesel
6-cylinder
liquid-cooled
Displacement496 ci
8.1 L
Bore/Stroke4.56x5.06 inches
116 x 129 mm
Power175 hp
130.5 kW
Fuel systemdirect injection
Air cleanerdual dry element
Compression16.5:1
Rated RPM2100
Torque579 lb-ft
785.1 Nm
Torque RPM1400
Starter volts12
Coolant capacity27.5 qts
26.0 L
Engine Oil

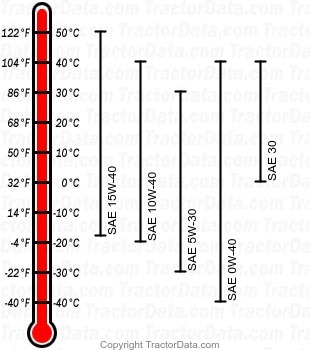

7810 diesel engine oil chart
Oil capacity25 qts
23.7 L
