John Deere 2440 Transmission


John Deere 2440 tractor photo
1976 - 1982
Model year
2040 Series
Utility tractor
2030
Series:224024402640
Transmissions overview
8-speed collar shift
16-speed two-speed power shift
8-speed power shuttle
Transmission
Type:collar shift
Gears:8 forward and 4 reverse
Four gears (1-4) in two ranges (I and II) plus reverse (R) range.
Speeds
With 14.9-28 rear tires.

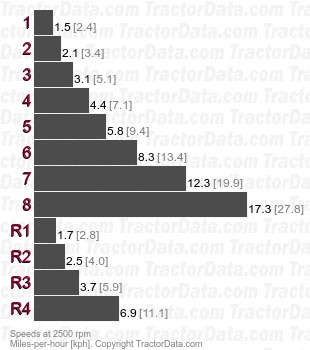

2440  collar shift speeds
Transmission
Transmission:Hi-Lo
Type:two-speed power shift
Gears:16 forward and 8 reverse
Clutch:dry disc
Speeds
With 14.9-28 rear tires.
2440 Hi-Lo two-speed power shift speeds
Transmission
Transmission:Direction Reverser
Type:power shuttle
Gears:8 forward and reverse
Four gears (1-4) in two ranges (I and II) with a left-hand hydraulic shuttle lever.
