Tractors > John Deere > 830

John Deere 830 Engine



John Deere 830 tractor photo
1973 - 1975
Generation II Series
Utility tractor
Series map:
830
38.9hp*
*Estimated engine power for comparison only.
Engine Detail
John Deere
diesel
3-cylinder
liquid-cooled inline
Displacement151.9 ci
2.5 L
Bore/Stroke3.858x4.33 inches
98 x 110 mm
Air cleanerdry
Compression16.7:1
Rated RPM2400
Firing order1-2-3
Starter volts12
Oil capacity6 qts
5.7 L
Coolant capacity11 qts
10.4 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm

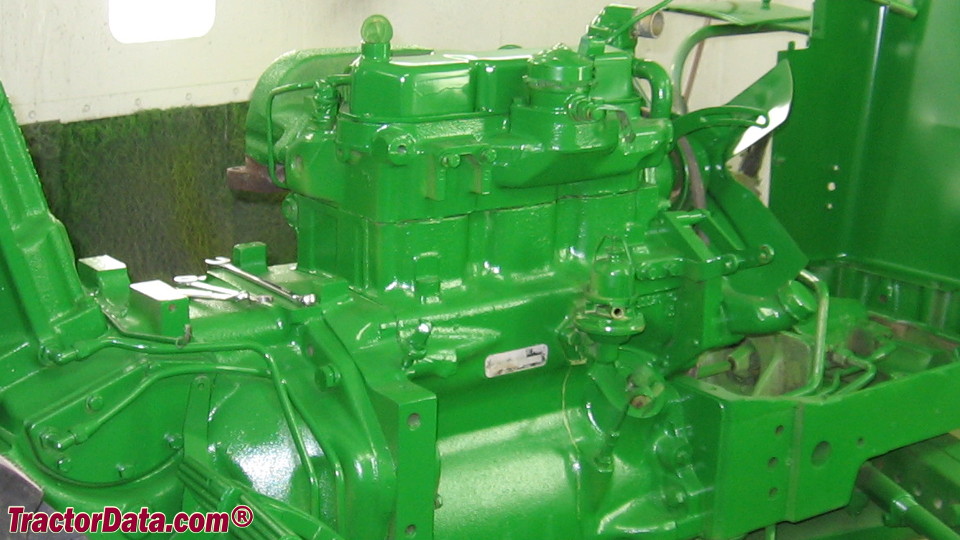

John Deere 830 Engine
John Deere 830 engine image
Image courtesy of Thomas Penny
