Tractors > John Deere > 5020

John Deere 5020 Tests



John Deere 5020 tractor photo
1965 - 1972
New Generation Series
Standard-tread tractor
Series map:
5020
155.6hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 947: diesel 8-speed 2WD
NTTL 1025: diesel 8-speed 2WD
Nebraska Tractor Test 947

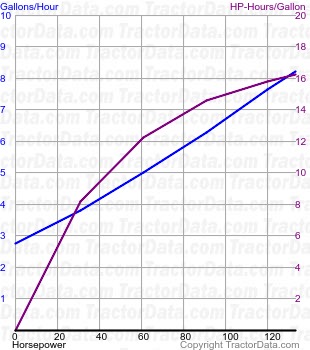

5020 fuel use from test 947
Nebraska Tractor Test 947
Diesel 8-speed 2WD
September 24 - October 1, 1966
Link: Nebraska Tractor Test 947 file
PTO performance
Power at rated engine speed133.25 hp
99.4 kW
Fuel use8.2 gal/hour
31.0 l/hour
Power at rated PTO speed122.76 hp
91.5 kW
Fuel use7.3 gal/hour
27.6 l/hour
Drawbar performance
Max power113.72 hp
84.8 kW
Fuel use8.2 gal/hour
31.0 l/hour
Gear 4 used for power test.
Max pull16197 lbs
7346 kg
Gear 1 used for pull test.
Nebraska Tractor Test 1025

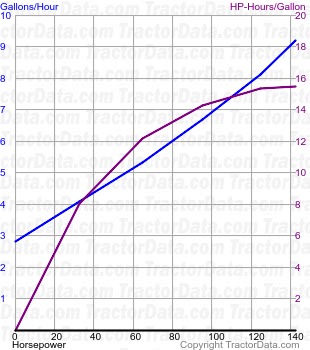

5020 fuel use from test 1025
Nebraska Tractor Test 1025
Diesel 8-speed 2WD
October 1 - 16, 1969
Link: Nebraska Tractor Test 1025 file
PTO performance
Power at rated engine speed141.34 hp
105.4 kW
Fuel use9.1 gal/hour
34.4 l/hour
Power at rated PTO speed128.51 hp
95.8 kW
Fuel use8.0 gal/hour
30.3 l/hour
Drawbar performance
Max power121.86 hp
90.9 kW
Fuel use9.0 gal/hour
34.1 l/hour
Gear 4 used for power test.
Max pull14949 lbs
6780 kg
Gear 2 used for pull test.
