Tractors > John Deere > 5010

John Deere 5010 Engine



John Deere 5010 tractor photo
1963 - 1965
New Generation Series
Standard-tread tractor
Series map:
5010
134.4hp*
*Estimated engine power for comparison only.
Engine Detail
John Deere
diesel
6-cylinder
liquid-cooled
Displacement531 ci
8.7 L
Bore/Stroke4.75x5.00 inches
121 x 127 mm
Compression16:1
Rated RPM2200
Firing order1-5-3-6-2-4
Starter volts24
Coolant capacity34 qts
32.2 L
Intake valve clearance0.015 inches
0.381 mm
Exhaust valve clearance0.022 inches
0.559 mm
Engine Oil

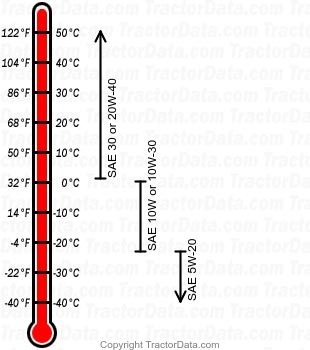

5010 diesel engine oil chart
Oil capacity12 qts
11.4 L
