| | 1933 - 1941 |
| Row-Crop tractor |
|
Series map:
UC
34.4hp*
*Estimated engine power for comparison only.
| Engine options |
| Allis-Chalmers 4.9L 4-cyl gasoline |
| Allis-Chalmers 5.2L 4-cyl gasoline |
| Engine Detail |
| Allis-Chalmers |
| gasoline |
| 4-cylinder |
| vertical I-head |
| The 301 Allis engine replaced was the second engine on the All-Crop / UC. It was used from 1933 until 1936; tractor serial numbers UC1369 though UC2281 |
| Displacement | 300.7 ci
4.9 L
|
| Bore/Stroke | 4.375x5.00 inches
111 x 127 mm
|
| Rated RPM | 1200
|

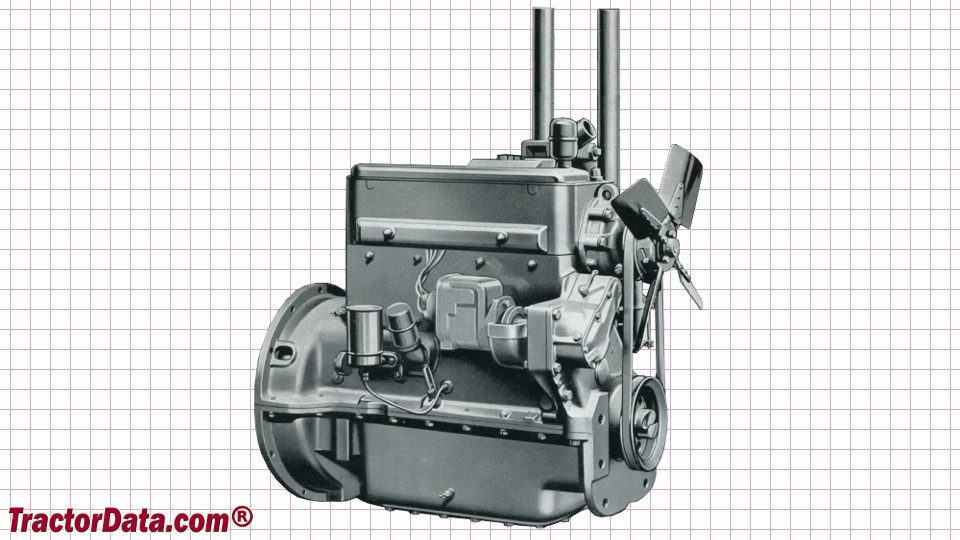

| Allis Chalmers UC Engine |
 |
| Engine Detail |
| Allis-Chalmers |
| gasoline |
| 4-cylinder |
| liquid-cooled vertical I-head |
| The 318 Allis was the final engine, introduced in 1936 on tractor serial number UC2282 |
| Displacement | 318 ci
5.2 L
|
| Bore/Stroke | 4.50x5.00 inches
114 x 127 mm
|
| Rated RPM | 1200
|
| Coolant capacity | 24 qts
22.7 L
|
