Allis Chalmers C
| | 1940 - 1949 |
| Row-Crop tractor |
|
Series map:
C
21.6hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Allis Chalmers
|
| Row-Crop tractor |
| Built in West Allis, Wisconsin, USA |
| Total built | 84,020
|
| Original price was $1,200 in 1949 |
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Mechanical drum brakes |
| Open operator station. |
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| Rear PTO Type | 560
|

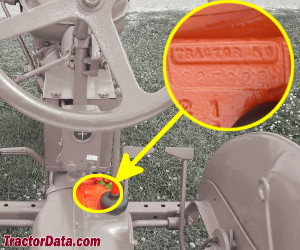

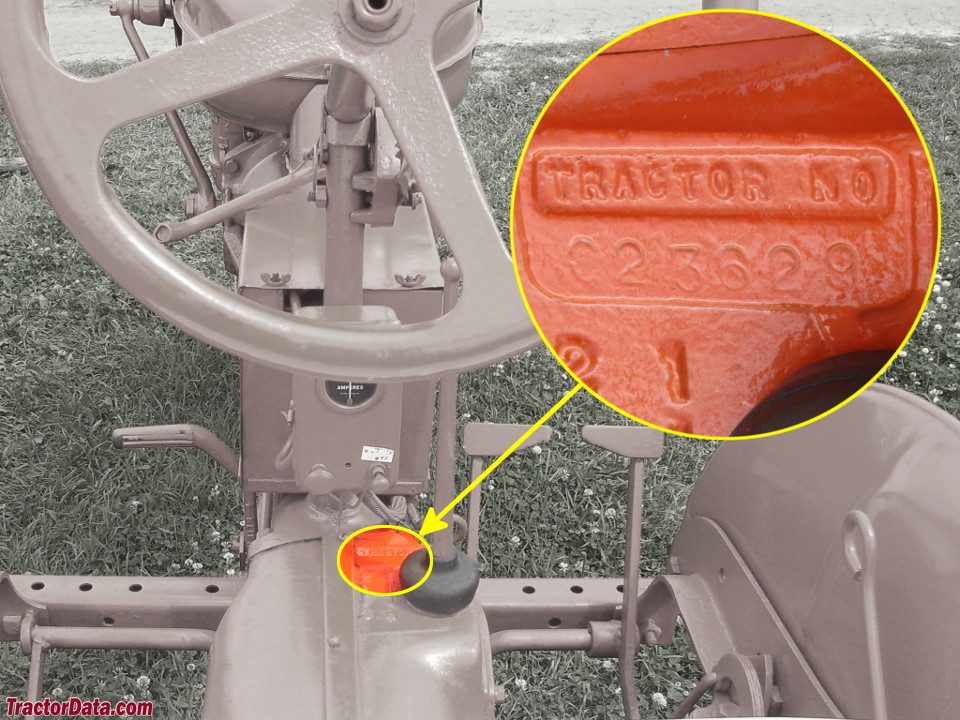

| C Serial Number Location |
 |
| On top of transmission case, behind shift lever |
| Belt Pulley |
| Diameter | 8 inches
20 cm
|
| Width | 5.5 inches
13 cm
|
| RPM | 1129
|
| Electrical |
| Ground | positive
|
| Charging system | generator
|
| Charging amps | 12
|
| Battery volts | 6
|
| Battery AH | 95
|
| References |
 |
| A New Adventure in Farming published in 1941, by Allis Chalmers |
| Two Snappy Wartime Tractors published in 1942, by Allis Chalmers |
| Diversified farming with the Allis-Chalmers Model C Tractor published in 1949, by Allis Chalmers |
| Build a Better Farm published in 1940, by Allis Chalmers |
 |
| Operating Instructions Model C Tractor (TPL-125H) |
| Operating Instructions Model C Tractor (TPL-465N) |
| Farm Equipment Service Manual (SM-3) |
