Allis Chalmers A

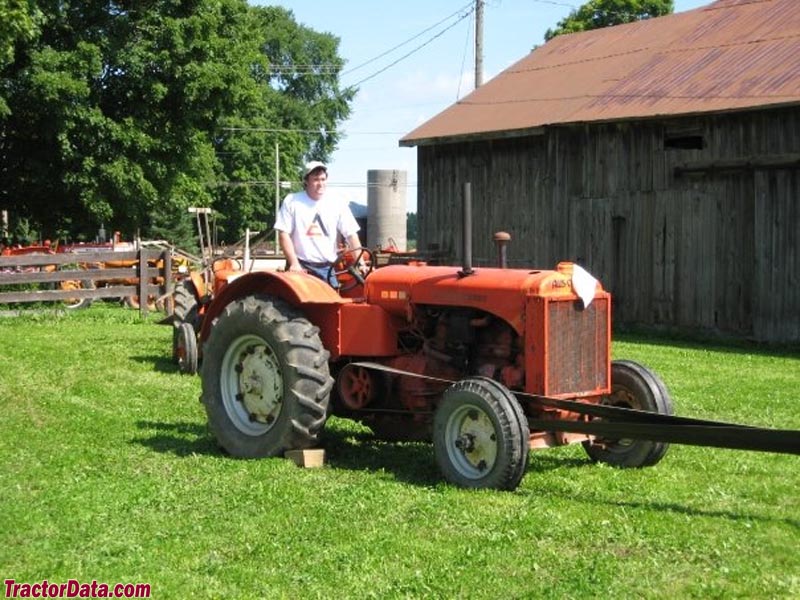

Allis Chalmers A tractor photo
1936 - 1942
Standard-tread tractor
25-40
Series:A
Production
Manufacturer:Allis Chalmers
Type:Standard-tread tractor
Factory:West Allis, Wisconsin, USA
Total built:1,225
Allis Chalmers A Power
Drawbar (claimed):33 hp
24.6 kW (early)
 39.7 hp
29.6 kW (late)
Belt (claimed):44 hp
32.8 kW (early)
 51.2 hp
38.2 kW (late)
Plows:4 (14 inch)
Allis Chalmers A Engines
Allis-Chalmers 7.6L 4-cyl gasoline
Allis-Chalmers 8.4L 4-cyl distillate
Aux. fuel:1 gal
3.8 L
 1.5 gal
5.7 L *Capacity after serial number 26527.
Engine details ...
Mechanical
Chassis:4x2 2WD
Steering:manual
Brakes:manual contracting band
Cab:Open operator's station.
Transmission:4-speed non-synchronized gear
Transmission details ...
Dimensions & Tires
Weight:7,175 lbs
3254 kg
Rear tire:48x12.1
Full dimensions and tires ...
A Serial Numbers
1936:25701
1937:25726
1938:26305
1939:26614
1940:26782
1941:26896
1942:26915
Final:26925

how to read serial numbers...

Belt Pulley
Diameter:13 inches
33 cm
Width:8.5 inches
21 cm
RPM:1000
Speed:3160 ft/min
963.17 meters/min
