Tractors > Long > 5-N-1 backhoe-loader

Long 5-N-1 Engine



Long 5-N-1 tractor photo
1971 - 1975
Backhoe loader tractor
Series map:
5-N-1
70.0hp
Engine Detail
Leyland 38 TD
diesel
4-cylinder
liquid-cooled
Displacement231 ci
3.8 L
Bore/Stroke3.937x4.724 inches
100 x 120 mm
Power70 hp
52.2 kW
Air cleanerdry
Compression16.5:1
Torque171 lb-ft
231.9 Nm
Torque RPM1400
Starterelectric
Starter volts12
Oil capacity8 qts
7.6 L
Coolant capacity14 qts
13.2 L

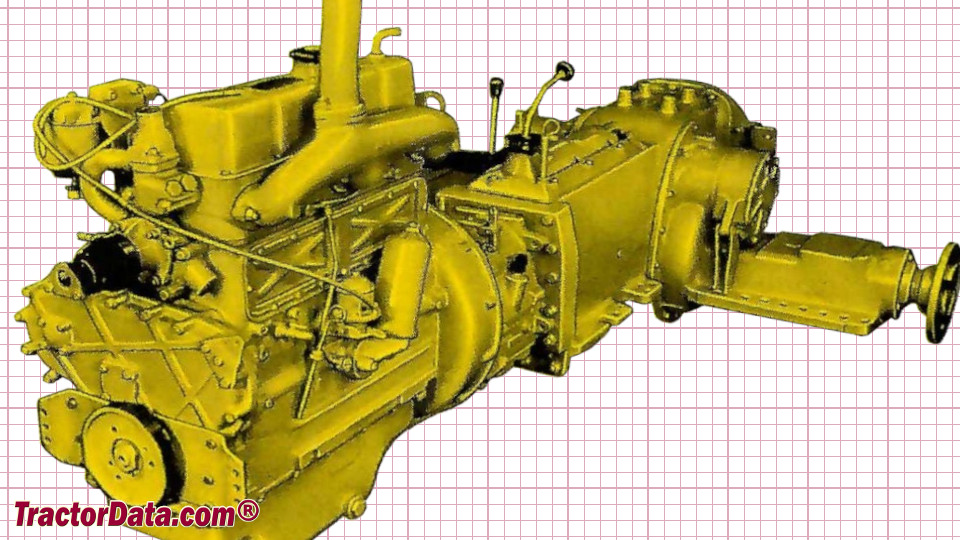

Long 5-N-1 Engine
Long 5-N-1 engine image
