John Deere 410D


John Deere 410D tractor photo
1991 - 1996
Backhoe loader tractor
Series map:
410D
510D
85.0hp
95.0hp
Production
ManufacturerJohn Deere
Backhoe loader tractor
John Deere 410D Engine
John Deere 4.5L 4-cyl diesel
Engine details ...
John Deere 410D Power
Engine (gross)90 hp
67.1 kW
Engine85 hp
63.4 kW
Mechanical
Two- or four-wheel drive
Final drivesinboard planetary
Power steering
Hydraulic wet disc brakes
Four-post ROPS/FOPS. Cab available cab with optional air-conditioning.
Capacity
Fuel34 gal
128.7 L
Hydraulic system21 gal
79.5 L
Hydraulics
Typeclosed center
Capacity21 gal
79.5 L
Pressure2755 psi
190.0 bar
Total flow35 gpm
132.5 lpm
Dimensions & Tires
Wheelbase83 inches
210 cm
Weight15600 to 16900 pounds
Front tire11L-16
Rear tire19.5L-24
Full dimensions and tires ...
Backhoe & Loader
Dig depth183 inches
464 cm
Dump angle45 inches
114 cm
Loader/Backhoe details ...

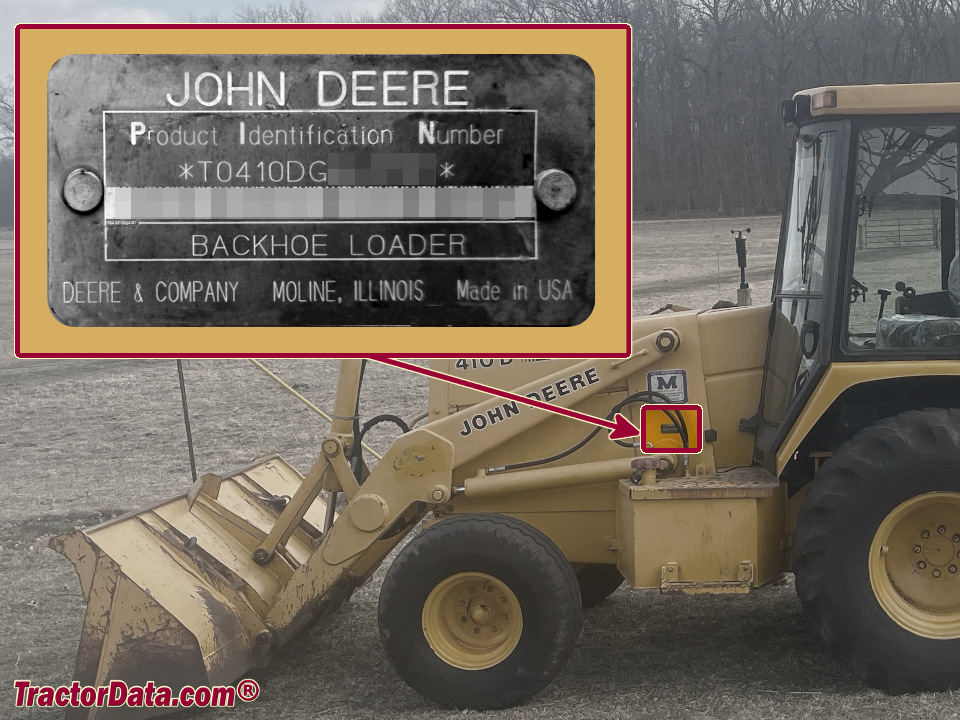

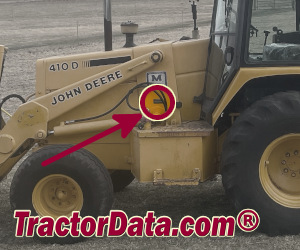

410D Serial Number Location
John Deere 410D serial number location
Serial number plate on the left side, above the fuel tank.
Electrical
Groundnegative
Charging systemalternator
Charging amps95
Battery volts12
References
410D references literature
Operator's Manual JD410D and 510D Backhoe Loader (OMT143669) published in 1984
Utility/Construction Purchasing Guide published in 1995, by John Deere
