John Deere 210C

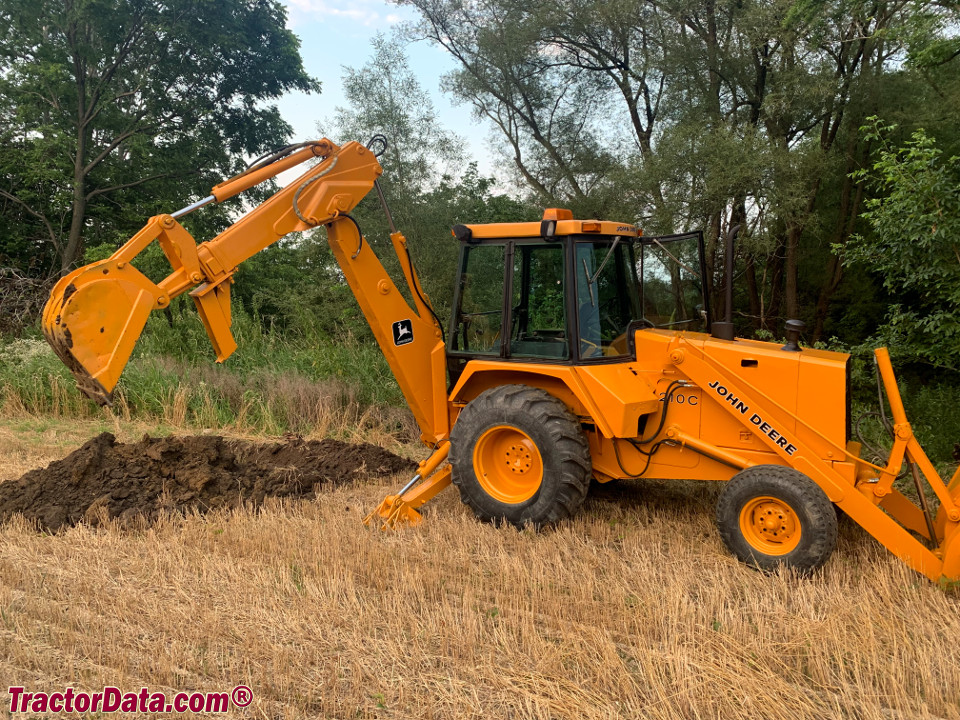

John Deere 210C backhoe photo
1986 - 1995
Backhoe loader tractor
Production
ManufacturerJohn Deere
Backhoe loader tractor
John Deere 210C Engine
John Deere 3.9L 4-cyl diesel
Engine details ...
John Deere 210C Transmission
4-speed power shuttle
Transmission details ...
John Deere 210C Power
Engine (gross)58 hp
43.3 kW
Engine (net)55 hp
41.0 kW
Mechanical
Two- or four-wheel drive
Final drivesinboard planetary
Power steering
Differential hydraulic wet disc brakes
Four-post ROPS/FOPS. Cab available with heater.
Photos
John Deere 210C
John Deere 210C photos...
Capacity
Fuel26 gal
98.4 L
Hydraulic system8 gal
30.3 L
Hydraulics
Typeopen center
Capacity8 gal
30.3 L
Pressure2500 psi
172.4 bar
Total flow24 gpm
90.8 lpm
Steering flow4.3 gpm
16.3 lpm
Dimensions & Tires
2WD Wheelbase82.7 inches
210 cm
4WD Wheelbase83.3 inches
211 cm
Weight10500 lbs
4762 kg
Front tire7.50-16
Rear tire14.9-24
Full dimensions and tires ...
Backhoe & Loader
Dig depth168 inches
426 cm
Dump angle45 inches
114 cm
Loader/Backhoe details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps51
 65 OptOptional
Battery volts12
References
210C references literature
Utility Equipment Purchasing Guide published in 1987, by John Deere
Utility Equipment Purchasing Guide published in 1988, by John Deere
