John Deere 310C


John Deere 310C backhoe photo
1986 - 1991
Backhoe loader tractor
310B
Series:310C
310D
Production
ManufacturerJohn Deere
TypeBackhoe loader tractor
FactoryDubuque, Iowa, USA
John Deere 310C Engine
John Deere 4.5L 4-cyl diesel
Engine details ...
John Deere 310C Power
Engine (gross)71 hp
52.9 kW
Engine (net)67 hp
50.0 kW
Mechanical
Chassis4x2 2WD
 4x4 MFWD 4WD
Final drivesinboard planetary
Steeringpower
CabFour-post FOPS/ROPS. Cab optional with available air-conditioning.
Capacity
Fuel23 gal
87.1 L
 38 gal (with aux tank)
143.8 L
Hydraulic system21 gal
79.5 L
Hydraulics
Typeopen center
Capacity21 gal
79.5 L
Pressure2755 psi
190.0 bar
Total flow35 gpm
132.5 lpm
Dimensions & Tires
Wheelbase83 inches
210 cm
Weight13500 lbs
6123 kg
Front tire11L-15
Rear tire16.9-24
Full dimensions and tires ...
Backhoe & Loader
Dig depth171 inches
434 cm
Dump angle45 inches
114 cm
Loader/Backhoe details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps51
 65
Battery volts12
References

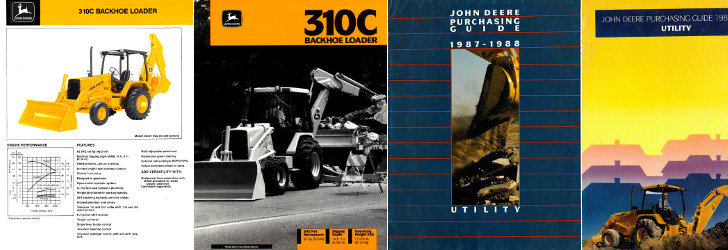

310C reference literature
310C Backhoe Loader published in 1986, by John Deere
310C Backhoe Loader published in 1990, by John Deere
