John Deere Z735E


John Deere Z735E lawn tractor photo
2019 -
Z700 Series
Zero-turn mower
Series:Z720EZ735EZ730M
Production
ManufacturerJohn Deere
TypeZero-turn mower
FactoryFuquay-Varina, North Carolina, USA
Original price$7,259 (2021 )
John Deere Z735E Engine
25HP Briggs & Stratton 809cc 2-cyl gasoline
Fuel tank8 gal
30.3 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringpower
CabTwo-post folding ROPS.
Photos
No photos of the John Deere Z735E are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Weight990 lbs
449 kg
Front tire13x6.5-6
Rear tire23x10.50-12
Full dimensions and tires ...
Electrical
Groundnegative
Battery CCA340
Battery volts12
References

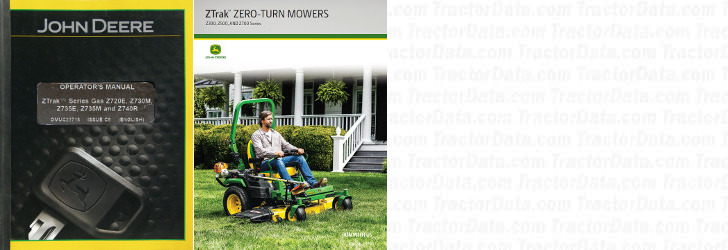

Z735E reference literature
Operator's Manual Z720E, Z730M, Z735E, Z735M and Z740R ZTrak Series Gas (OMUC23718) published in 2018, by John Deere
ZTrak Zero-Turn Mowers published in 2020, by John Deere
