Yamaha YT3600 Engine


Yamaha YT3600 tractor photo
1988 - 1992
Lawn tractor
Series map:
YT3600
YT5700
12.0hp
16.0hp
Engine Detail
Yamaha
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement358 cc
21.9 ci
Bore/Stroke3.23x2.68 inches
82 x 68 mm
Power (gross)12 hp
8.9 kW
Air cleanerdry
Compression8.5:1
Torque17.4 lb-ft
23.6 Nm
Torque RPM2500
Starterelectric
Starter volts12

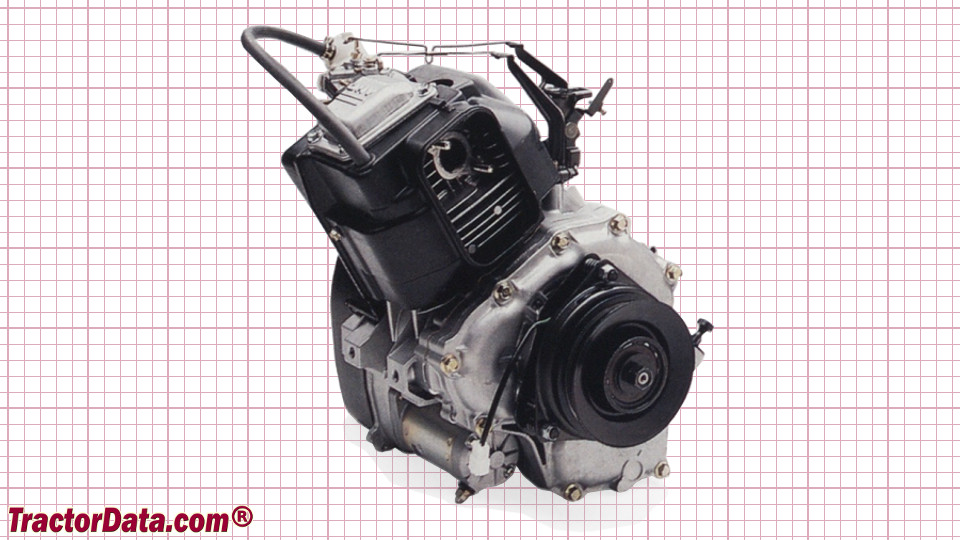

Yamaha YT3600 Engine
Yamaha YT3600 engine image
