Lawn Tractors > Allis Chalmers > 616 Hydro

Allis Chalmers 616 Hydro

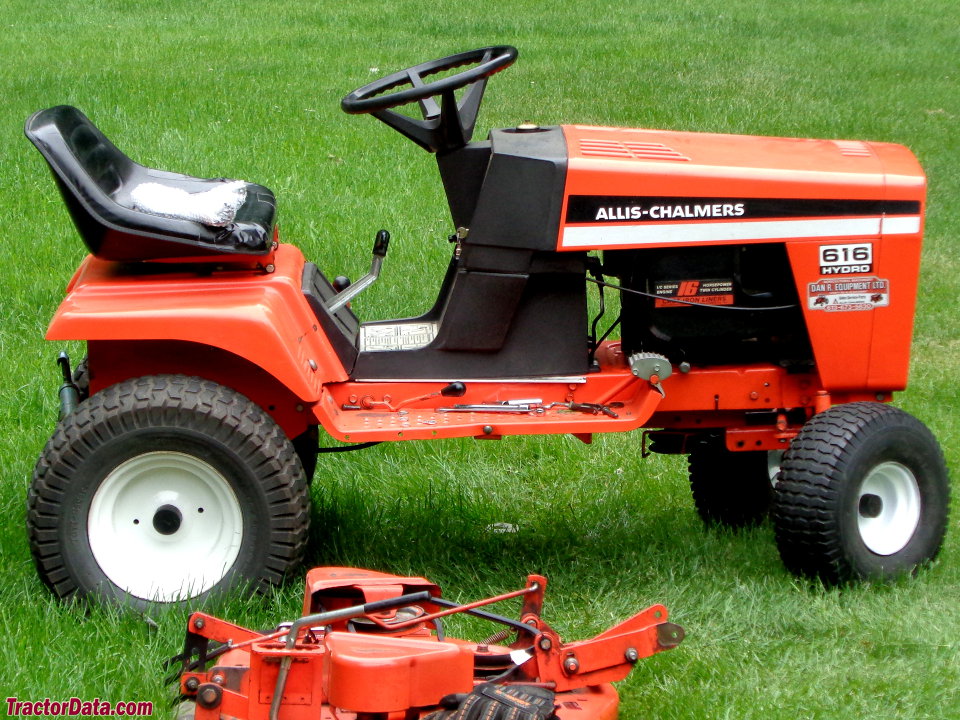

Allis Chalmers 616 Hydro lawn tractor photo
1983 - 1985   600 Lawn Series
Lawn tractor
Series back:Allis Chalmers 611 Hydro






Production:

Distributor:Allis Chalmers
Manufacturer:Simplicity
Factory:Port Washington, Wisconsin, USA
Original price (USD)
   $3,049 (1984 )


Allis Chalmers 616 Hydro Engine:

   16HP Briggs & Stratton 655cc 2-cyl gasoline
full engine details ...


Capacity:

Fuel:2.2 gal [8.3 L]


Power Take-off (PTO):

Mid PTO:independent
Clutch:mechanical idler pulley


Dimensions & Tires:

Wheelbase:48.1 inches [122 cm]
Weight:421 lbs [190 kg]
Front tire:13x5.00-6
Rear tire:20x8.00-10
full dimensions and tires ...


Allis Chalmers 616 Hydro attachments:

 36" mid-mount mower deck
 42" mid-mount mower deck
 snowblower
 blade
all 616 Hydro attachments ...


616 Hydro Serial Numbers:


how to read serial numbers...



Mechanical:

Transmission:hydrostatic
Chassis:4x2 2WD
Steering:manual
Brakes:mechanical disc
Cab:Open operator station.


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
Amp-hours:30
