Lawn Tractors > Simplicity > CFC 20

Simplicity CFC 20

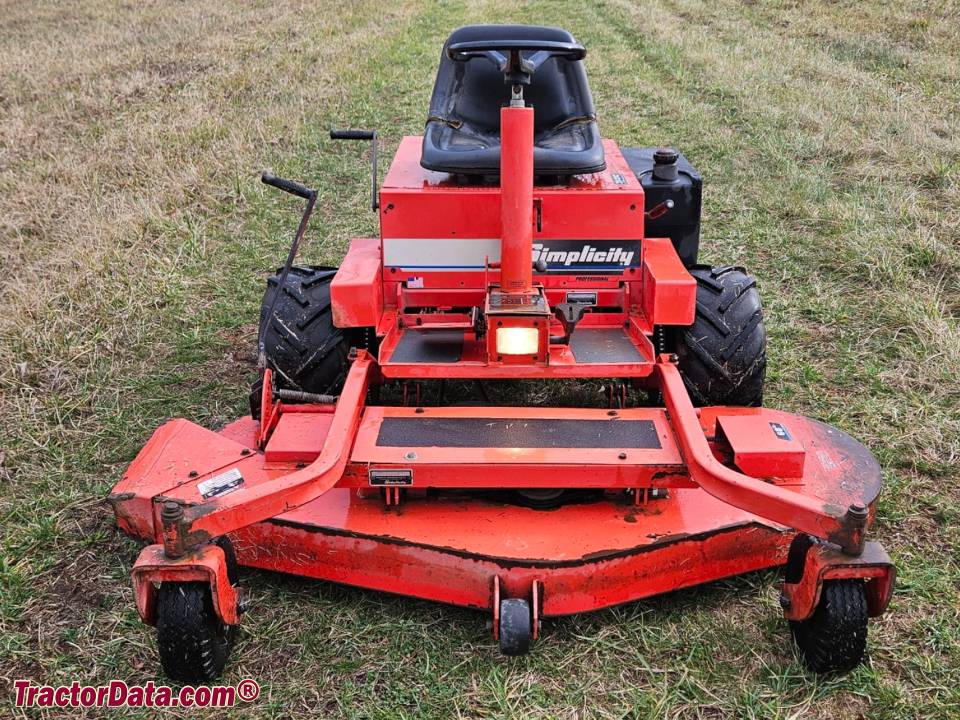

Simplicity CFC 20 lawn tractor photo
1990 - 1994   CFC Series
Front-mount mower
Previous model:Simplicity CFC 20
Next model:Simplicity CFC 20






Production:

Manufacturer:Simplicity
Original price (USD)
   $7,800 (1992 )


Variants:

CFC 20:[2691]
CFC 20L:lever steer


Simplicity CFC 20 Engine:

   20HP Kohler 770cc 2-cyl gasoline
full engine details ...


Capacity:

Fuel:4 gal [15.1 L] (early)
 5.7 gal [21.6 L] (late)


Power Take-off (PTO):

Front PTO:independent
Clutch:mechanical ilder pulley


Dimensions & Tires:

Weight:690 lbs [312 kg]
Front tire:18x9.50-8
Rear tire:13x5.00-6
full dimensions and tires ...


Simplicity CFC 20 attachments:

 60" front-mount mower deck
 66" front-mount mower deck
all CFC 20 attachments ...


CFC 20 Serial Numbers:


- Serial numbers unknown -



Mechanical:

Transmission:hydrostatic
Chassis:3x1 2WD
Steering:power
Brakes:mechanical band
Cab:Open operator station.


Electrical:

Ground:negative
Charging amps:15


Battery:

Number:1
Cold-cranking amps:340
Volts:12
