John Deere X350R Engine


John Deere X350R lawn tractor photo
2016 - 2024
Model year
Select X300 Series
Rear-discharge mower
Series map:
X350R
18.5hp
Engine Detail
Kawasaki FS600V
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement603 cc
36.8 ci
Bore/Stroke2.87x2.84 inches
73 x 72 mm
Power (gross)18.5 hp
13.8 kW
Fuel systemcarburetor
Air cleanerdry with foam precleaner
Rated RPM3600
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

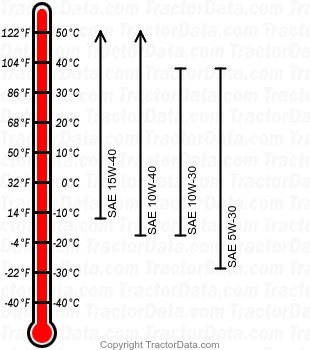

X350R gasoline engine oil chart
Oil capacity1.8 qts
1.7 L
Oil change100 h
