John Deere X300R Engine
|
|
| Engine options | |
| 17HP Kawasaki 472cc 2-cyl gasoline | |
| 18.5HP Kawasaki 603cc 2-cyl gasoline |
| Engine Detail | |
| Kawasaki FH491V | |
| gasoline | |
| 2-cylinder | |
| air-cooled vertical-shaft V-Twin | |
| Original engine, used until the 2011 model year. | |
| Displacement | 472 cc 28.8 ci |
| Bore/Stroke | 2.68x2.56 inches 68 x 65 mm |
| Power (gross) | 17 hp 12.7 kW |
| Fuel system | carburetor |
| Starter volts | 12 |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Point gap | 0.013 inches 0.330 mm |
| Intake valve clearance | 0.004 inches (Cold) 0.102 mm |
| Exhaust valve clearance | 0.004 inches (Cold) 0.102 mm |

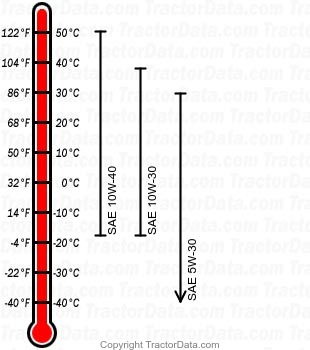

| Engine Oil | |
| |
| Oil capacity | 1.8 qts 1.7 L |
| Engine Detail | |
| Kawasaki FS600V | |
| gasoline | |
| 2-cylinder | |
| air-cooled vertical-shaft V-Twin | |
| Displacement | 603 cc 36.8 ci |
| Bore/Stroke | 2.87x2.83 inches 73 x 72 mm |
| Power (gross) | 18.5 hp 13.8 kW |
| Fuel system | carburetor |
| Air cleaner | dry with foam pre-cleaner |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Intake valve clearance | 0.004 inches (cold) 0.102 mm |
| Exhaust valve clearance | 0.004 inches (cold) 0.102 mm |
