Simplicity Landlord 2110

Simplicity Landlord 2110 lawn tractor photo
1968 - 1968   Landlord Series
Garden tractor
Previous model:Simplicity Landlord 2010
Next model:Simplicity Landlord 2210






Production:

Manufacturer:Allis Chalmers
Factory:Port Washington, Wisconsin, USA


Variants:

990432:mechanical lift
990433:hydraulic lift


Simplicity Landlord 2110 Engine:

   10HP Briggs & Stratton 392cc 1-cyl gasoline
full engine details ...


Capacity:



Power Take-off (PTO):

Mid PTO:independent
Clutch:mechanical idler pulley


Dimensions & Tires:

Wheelbase:44.5 inches [113 cm]
Weight:680 lbs [308 kg]
Front tire:4.80-8
Rear tire:8.50-12
full dimensions and tires ...


Simplicity Landlord 2110 attachments:

 42" mid-mount mower deck
 snowblower
 blade
all Landlord 2110 attachments ...


Landlord 2110 Serial Numbers:

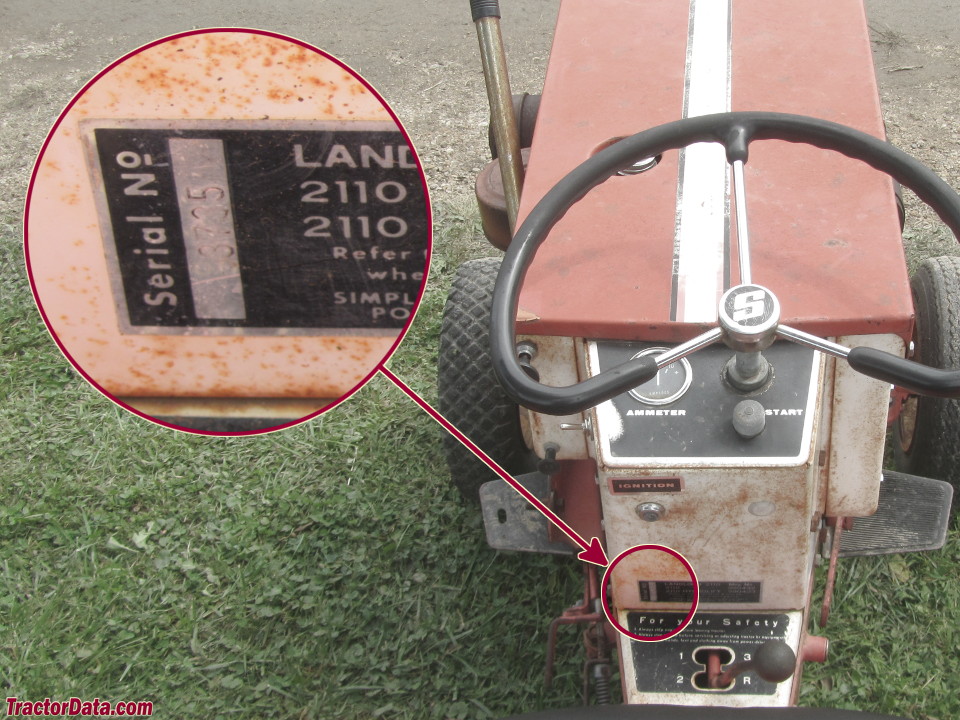

Location:Serial number plate on dashboard, below steering column.

- Serial numbers unknown -



Mechanical:

Transmission:3-speed gear
Chassis:4x2 2WD
Steering:manual
Brakes:mechanical band
Cab:Open operator station.


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
