Simplicity Conquest 23/50



No photo available
2006 - 2009
Conquest Series
Garden tractor
Series map:
Conquest 23/44
Conquest 23/50
Conquest 23/50 4WD
23.0hp
23.0hp
23.0hp
Production
ManufacturerSimplicity (a part of Briggs & Stratton)
Garden tractor
Original price$5,900 (2009 manual steer )
$6,250 (2009 power steer )
Variants
23/50two-wheel drive
23/50 4WDfour-wheel drive
2723Hsimilar Massey Ferguson model
YT2350similar Snapper model
1723Hsimilar AGCO model
Simplicity Conquest 23/50 Engine
23HP Vanguard 626cc 2-cyl gasoline
Fuel tank4 gal
15.1 L
Engine details ...
Simplicity Conquest 23/50 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Differential lockmechanical rear
Steeringmanual
Steeringpower OptOptional
Disc brakes
Open operator station with 18-inch adjustable seat.
Photos

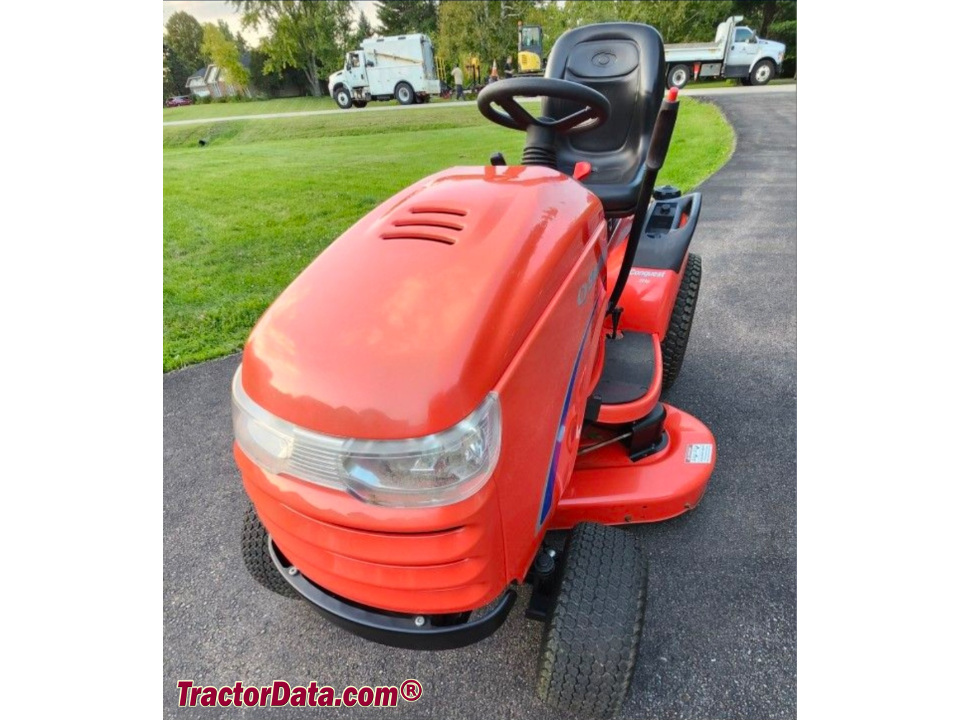

Simplicity Conquest 23/50 garden tractor.
Simplicity Conquest 23/50 photos...
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Mid PTO Typepulley
Dimensions & Tires
Wheelbase53 inches
134 cm
Weight711 lbs
322 kg
Front tire16x6.5-8
Rear tire23x10.5-12
Full dimensions and tires ...
Simplicity Conquest 23/50 attachments
50" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Charging amps16
Battery CCA340
Battery volts12
References
Conquest 23/50 references literature
Operator's Manual Prestige / 1800 / 2800 / 500 Series, Conquest / 1700 / 2700 / 400 Series (1735106) published in 2010
Product Guide 2008 published by Simplicity
