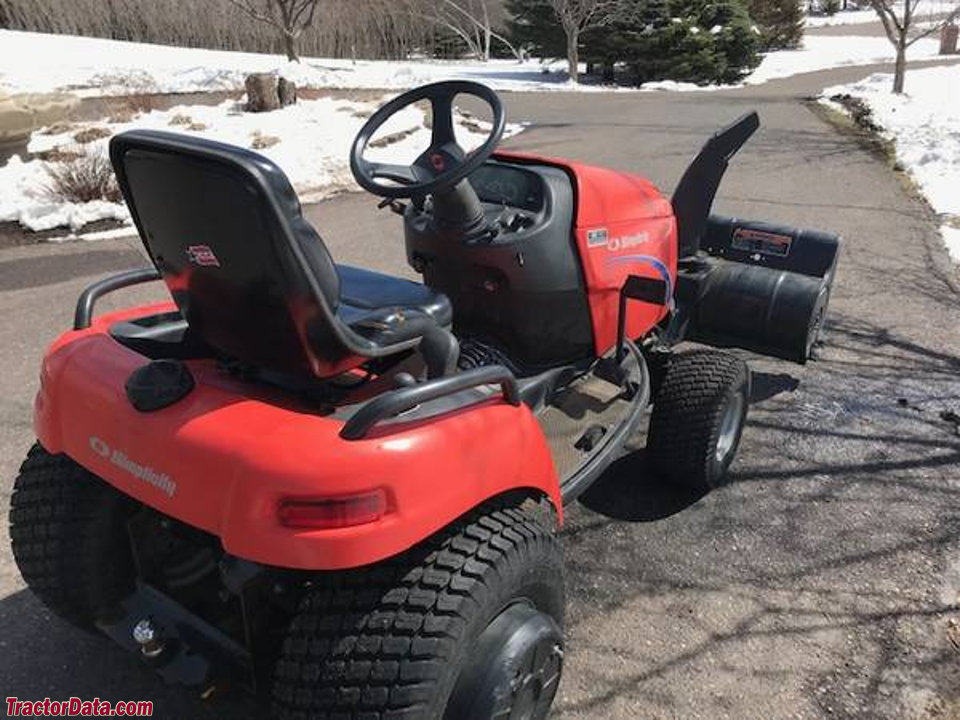

Simplicity Legacy 23
| | 2001 - 2003 |
| Legacy Series | | Garden tractor |
|
| Production |
| Manufacturer | Simplicity
|
| Garden tractor |
| Built in Port Washington, Wisconsin, USA |
| Original price was $9,500 in 2001 |
| Variants |
| 2923 | similar Massey Ferguson model
|
| 2023H | similar AGCO model
|
| Mechanical |
| Two-wheel drive |
| Final drives | spur gear
|
| Differential lock | mechanical rear
|
| Power steering |
| Disc brakes |
| Open operator station. Hard-side weather cab optional. Two-post ROPS available. |
| Hydraulics |
| Pressure | 950 psi
65.5 bar
|
| Pump flow | 3 gpm
11.4 lpm
|
| Tractor hitch |
| Rear Type | 0 OptOptional
|
| Rear lift | 450 lbs
204 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent OptOptional
|
| Clutch | electric
|
| Rear PTO Type | 540 (1.375)
|
| | 2000 (1.0)
|
| Front PTO | independent
|
| Clutch | electro-magnetic
|
| Legacy 23 Serial Numbers |
| Location: | Left side of tractor frame, ahead of operator platform.
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 15
|
| Battery CCA | 500
|
| Battery volts | 12
|
| References |
 |
| The way to a beautiful lawn. published in 2000, by Simplicity |
| The Way To A Beautiful Lawn published in 2003, by Simplicity |
| Product Guide Fall 2001 published by Simplicity |
| Product Guide 2003 published by Simplicity |
| Operator's Manual Legacy / 2000 / 2900 Series (1717573) published in 2003 |
| 2002 Product Specifications published by Simplicity |
