Simplicity Landlord 23 DLX

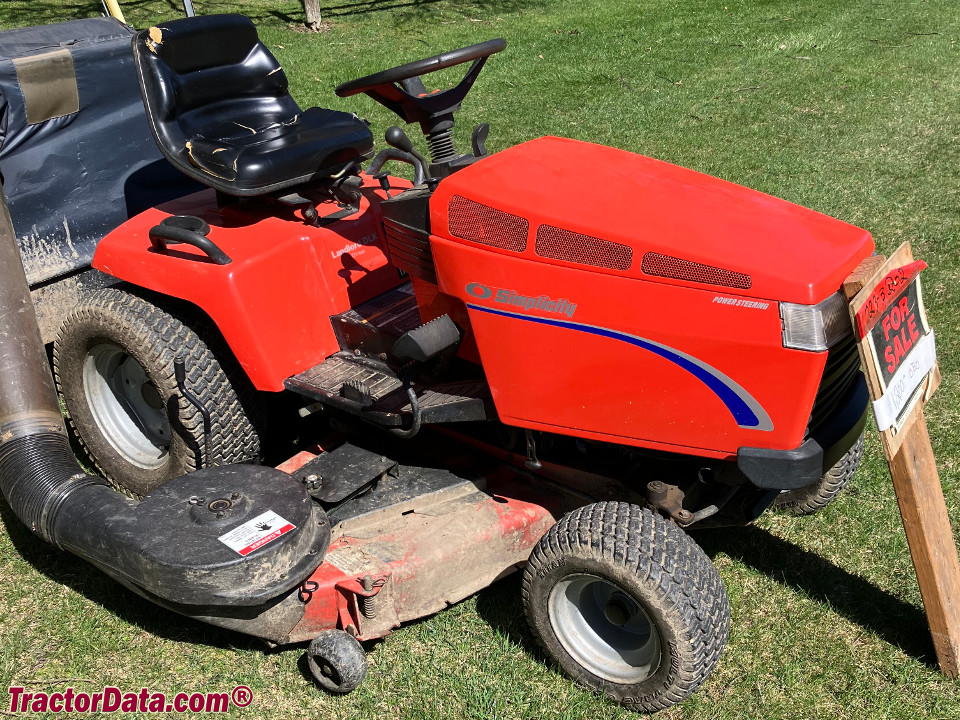

Simplicity Landlord 23 DLX lawn tractor photo
2000 - 2001
Landlord Series
Garden tractor
Series map:
Landlord 20 DLX
Landlord 23 DLX
20.0hp
23.0hp
Production
ManufacturerSimplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Variants
1723Hsimilar AGCO model
2723Hsimilar Massey Ferguson model
Simplicity Landlord 23 DLX Engine
23HP Kohler 673cc 2-cyl gasoline
Fuel tank4.25 gal
16.1 L
Engine details ...
Simplicity Landlord 23 DLX Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Differential lockmechanical rear
Power steering
Open operator station.
Photos
Simplicity Landlord 23 DLX
Simplicity Landlord 23 DLX photos...
Tractor hitch
Typesleeve hitch OptOptional
Power Take-off (PTO)
Mid PTOindependent
Clutchelectro-magnetic
Mid PTO Typepulley
Dimensions & Tires
Wheelbase52.25 inches
132 cm
Weight560 lbs
254 kg
Front tire16x6.50-8
Rear tire23x10.50-12
Full dimensions and tires ...
Simplicity Landlord 23 DLX attachments
54" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps15
Battery CCA340
Battery volts12
References
Landlord 23 DLX references literature
The way to a beautiful lawn. published in 2000, by Simplicity
