Bolens 800


Bolens 800 lawn tractor photo
1963 - 1965
Tube Frame Series
Garden tractor
Series:600800900
850
Production
ManufacturerBolens
TypeGarden tractor
Bolens 800 Engines
7.25HP Wisconsin 304cc 1-cyl gasoline
8.25HP Wisconsin 331cc 1-cyl gasoline
Fuel tank1 gal
3.8 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station
Dimensions & Tires
Wheelbase42.5 inches
107 cm
Weight595 lbs
269 kg
Front tire4.00-8
Rear tire6.00-12
Full dimensions and tires ...
Bolens 800 attachments
32" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
References

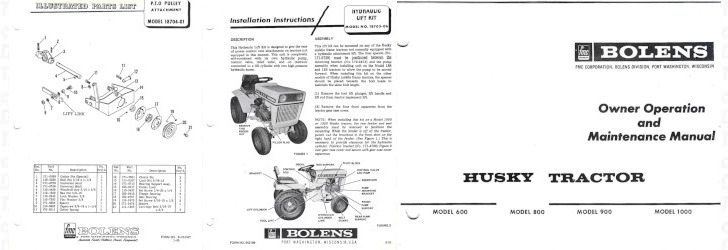

800 reference literature
Outdoor Power Equipment published in 1963, by Bolens
Outdoor Power Equipment published in 1964, by Bolens
Husky Tractors published in 1964, by Bolens
Outdoor Power Equipment published in 1965, by Bolens
