Bolens H-16 1656

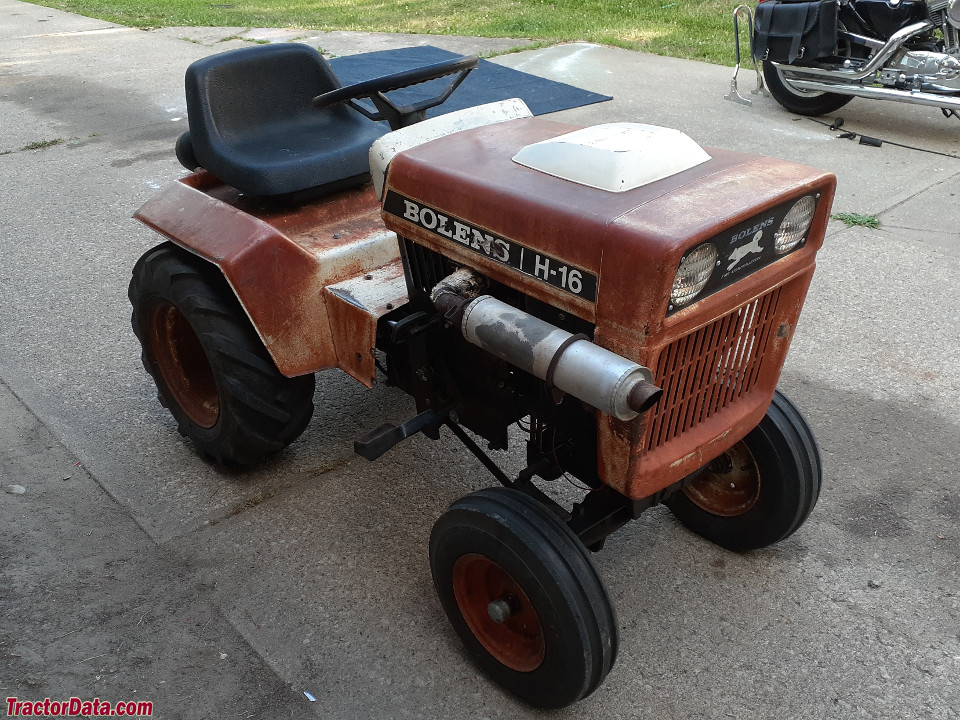

Bolens H-16 1656 lawn tractor photo
1973 - 1977
Tube Frame Series
Garden tractor
Production
ManufacturerBolens
TypeGarden tractor
Bolens H-16 Engine
16HP Tecumseh 453cc 1-cyl gasoline
Fuel tank1.25 gal
4.7 L
Engine details ...
Mechanical
Chassis4x2 2WD
Differential lockcontrolled traction
Steeringmanual
Brakesdisc
CabOpen operator station.
Power Take-off (PTO)
Front PTOindependent
Clutchmechanical
Front RPM3600
Dimensions & Tires
Wheelbase42.5 inches
107 cm
Weight660 lbs
299 kg
Front tire16-6.50x8
Rear tire23-10.50x12
Full dimensions and tires ...
Bolens H-16 attachments
42" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
Battery AH45
References
H-16 1656 reference literature
Lawn and Garden Tractors published in 1973, by Bolens
Owner Manual published in 1975, by Bolens
