Lawn Tractors > Bolens > H-16 1656

Bolens H-16 1656 Engine



Bolens H-16 1656 tractor photo
1973 - 1977
Tube Frame Series
Garden tractor
Series map:
H-14
H-16
14.0hp
16.0hp
Engine Detail
Tecumseh HH160
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement453 cc
27.66 ci
Bore/Stroke3.50x2.875 inches
89 x 73 mm
Power (gross)16 hp
11.9 kW
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

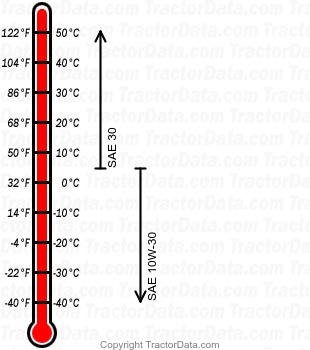

H-16 1656 gasoline engine oil chart
Oil capacity1.6 qts
1.5 L
Oil change25 h
