Sears ST/16 917.25740


Sears ST/16 917.25740 lawn tractor photo
1973 - 1976
Model year
Garden tractor
Roper built
Production
DistributorSears
ManufacturerRoper
TypeGarden tractor
Sears ST/16 Engine
16HP Techumseh 453cc 1-cyl gasoline
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Tractor hitch
TypeSears 3-Point OptOptional
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
Dimensions & Tires
Wheelbase43.5 inches
110 cm
Weight670 lbs
303 kg
Front tire16x5.50
Rear tire23x9.50
Full dimensions and tires ...
Sears ST/16 attachments
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
front-end loader
Attachment details ...
ST/16 Serial Numbers

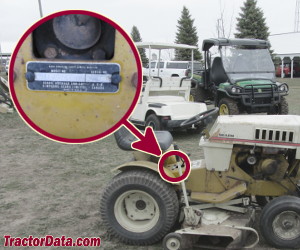

ST/16 Serial Location
Sears ST/16 serial number location
Serial number on the plate behind the gear shift lever.
Electrical
Groundnegative
Battery volts12
References
ST/16 917.25740 reference literature
Owners manual 917.25740 (2808R-19-2.73) published in 1973, by Sears
Lawn and Garden Tractors published in 1972, by Sears
Lawn and Garden Tractors published in 1974, by Sears
