Sears ST/16 917.25740 Engine

Sears ST/16 917.25740 lawn tractor photo
1973 - 1976
Model year
Garden tractor
Roper built
Engine Detail
Techumseh OH160
air-cooled horizontal-shaft
Displacement453 cc
27.66 ci
Bore/Stroke3.50x2.875 inches
89 x 73 mm
Power (gross)16 hp
11.9 kW
Starter volts12
Oil change25 h
Sparkplug gap0.030 inches
0.762 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.010 inches
0.254 mm

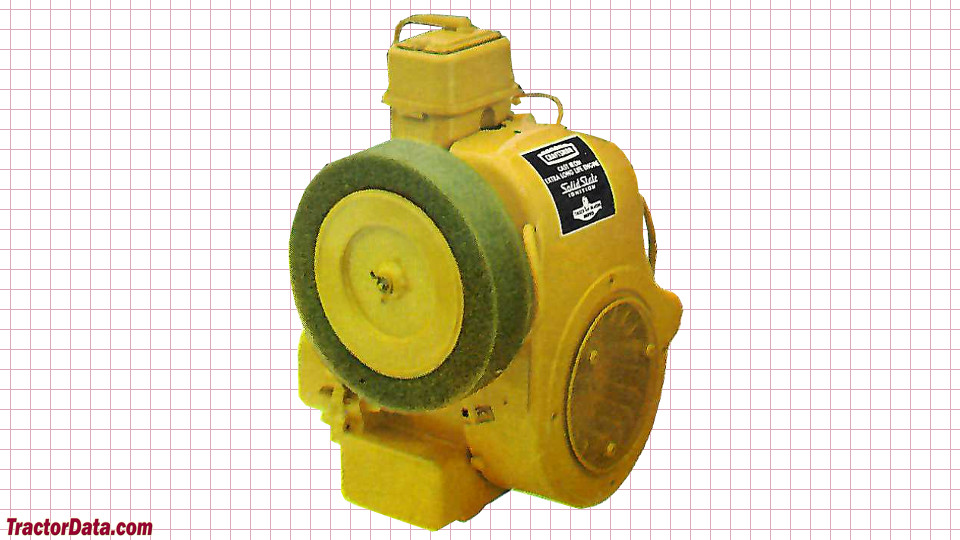

Sears ST/16 Engine
Sears ST/16 engine image
